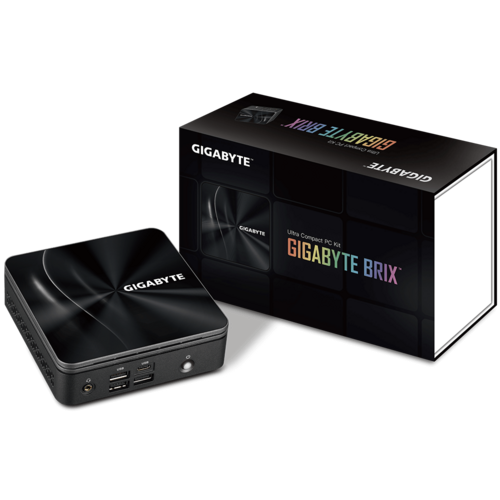

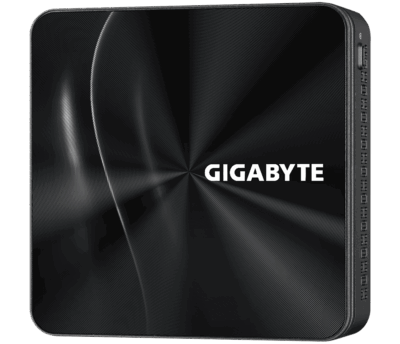

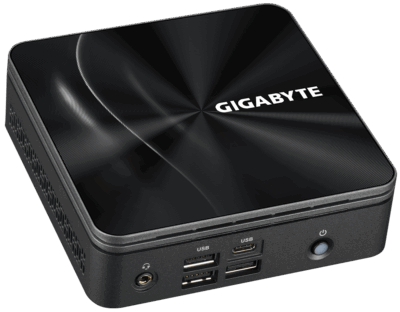

Gigabyte BRIX GB-BRR5-4500 – AMD RYZEN R5-4500U 2.3 GHz – Barebone
€ 399,00
Gigabyte BRIX GB-BRR5-4500 – Barebone – Ultra Compact PC Kit – 1 x AMD RYZEN R5-4500U, 2.3G~4.1G Turbo, 6C/6T Core – AMD Radeon™ Graphics – 2.5GigE – Intel WiFi6 AX200 / BT 5.2
Nooit meer leverbaar
- High Performance Ultra Compact PC (34.7 x 119.5 x 119.5 mm)
- 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
- 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
- Intel WIFI6 +BT5.2
- Realtek 2.5G LAN RTL8125
- QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
- 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
- Realtek ALC255 Codec
- Headphone Jack
- VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
- AC-DC adapter : 100-240V input, 19V/135W
- OS Support : Microsoft Windows 10 64Bit
- 1x Kensington Lock slot
- System Environment Operating Temperature: 0°C to +35°C
- System Storage Temperature: -20°C to +60°C
Small Outside, Powerful Inside
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with pure black stylish chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
AMD Ryzen 4000U Overview
AMD Ryzen 4000U series processors are based on the 7nm technology offering an incredible power efficiency leap. These new processors sport the Zen 2 core technology with 15% higher instructions per clock and 20% lower SOC power.
BEST CPU CORE
15% Higher Instructions Per Clock
Higher Clock Frequency
7nm TECHNOLOGY
2x Transistor Density Leadership Technology
POWER EFFICIENT
20% Lower SOC Power
2x Performance Per Watt
Connectivity
GIGABYTE BRIX AMD Ryzen 4000U series offer a plethora of available connections. All models provide multiple ports from Type-C connection all the way to AC Wi-Fi connectivity to 4x monitor outputs able to cover the needs of a business all the time.
-
Dimension34.7 mm x 119.5 mm x 119.5 mm (1.37″ x 4.7″ x 4.7″)
-
Motherboard Size105 x 110 mm
-
CPUAMD RYZEN R5-4500U, 2.3G~4.0G Turbo, 6C/6T Core, 11MB L3 Cache
AMD Radeon GPU 1500Mhz , 15W -
Memory2 x SO-DIMM DDR4 slots
3200MHz
Max. 64GB -
LAN2.5G LAN (Realtek 8125)
-
Wifi CardIntel WiFi6 AX200 / BT 5.2
-
AudioRealtek ALC255
-
VideoAMD Radeon™ Graphics
-
HDMI Resolution (Max.)HDMI2.0a ws HDCP 2.2
3840×2160@60Hz -
Storage1 x M.2 slot (2280_storage)
PCIe Gen3 X4 /SATA -
Expansion Slots1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
-

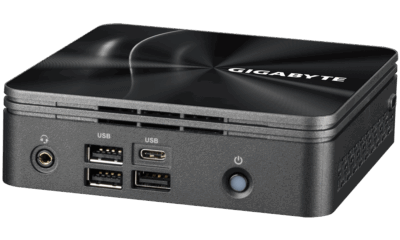

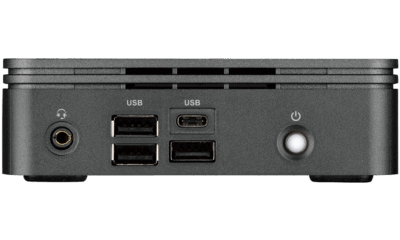

Front I/O1 x Power Button
1 x USB 3.2 type C (Gen2) w/ DP alt mode
3 x USB type A 3.2 (Gen1)
1 x head phone jack with MIC -

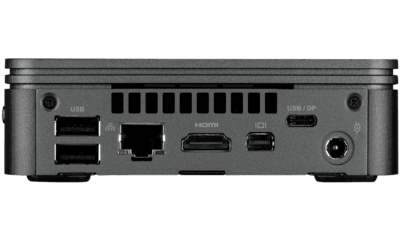

Rear I/O1 x HDMI(2.0a)
1 x mDP
1 x USB 3.2 type C (Gen2) w/ DP alt mode
2 x USB 3.2 type A (Gen 1)
1 x RJ45
1 x DC-In -

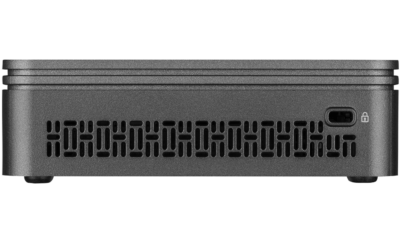

Side I/O1 x Kensington lock slot
-
Power SupplyInput: AC 100-240V
Output: DC 19V/4.74A, 90W -
Support OSWin10 64bit
-
EnvironmentOperating Temperature 0°C to 35°C
Storage Temperature -20°C to +60°C
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
| EAN | 4719331600693 |
|---|---|
| Multi-Core Technologie | |
| Processor | |
| RAM | |
| Geheugentype | |
| Geheugengrootte | |
| Harde schijf | |
| Graphics controller |
