Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C TG Dark Tint carves a space uniquely its own as a new force in high-airflow design. Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C TG Dark Tint has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
When performance is top priority and compromise is not an option, Meshify has you covered in style.
Key features
- Streamlined high-airflow design
- The performance and capacity of a larger tower in a remarkably compact mid-tower size

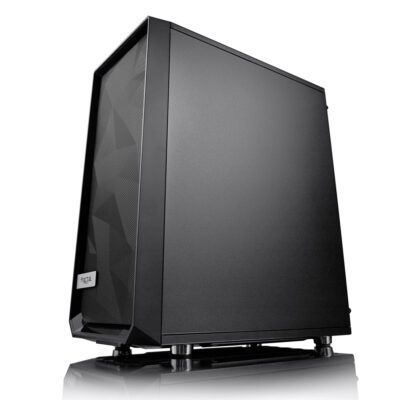

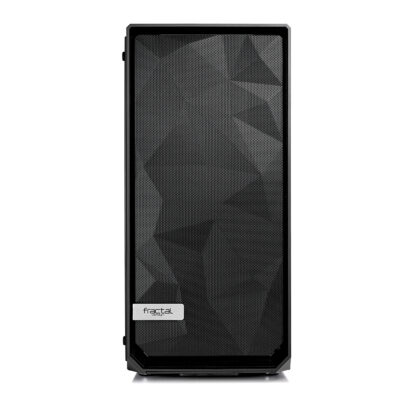

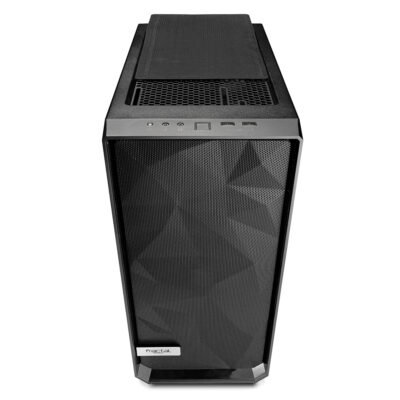

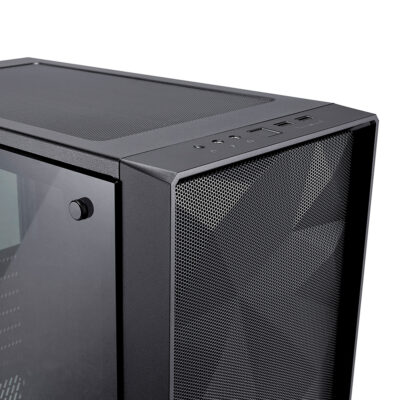

- Newly designed angular mesh front panel maximizes air intake

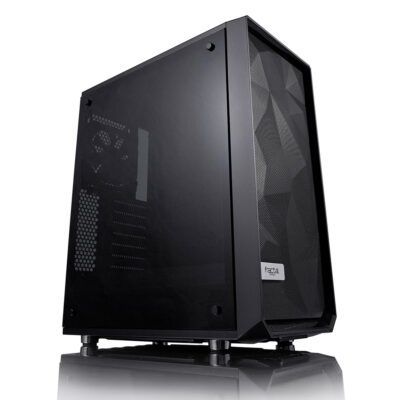

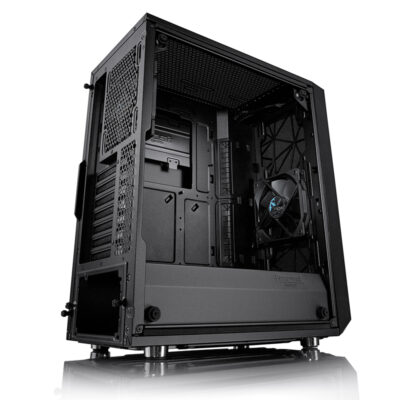

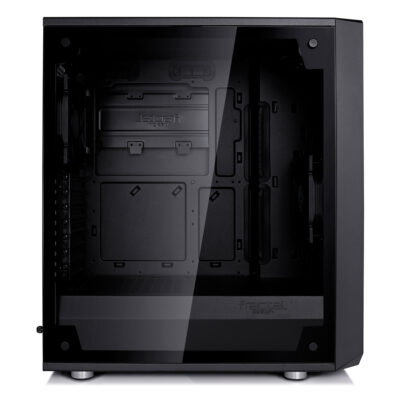

- Tinted tempered glass side panel for a clean looking exterior with full interior visibility
- Distinctive new styling with stealthy black-on-black aesthetic

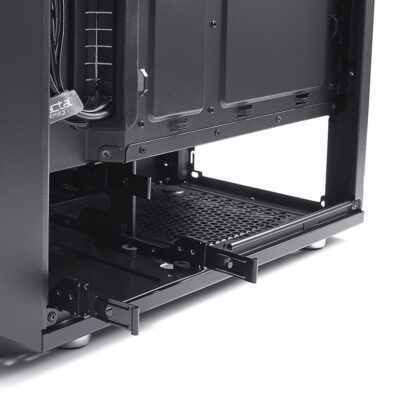

- Flexible storage options with room for up to 5 drives
- Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
- Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise

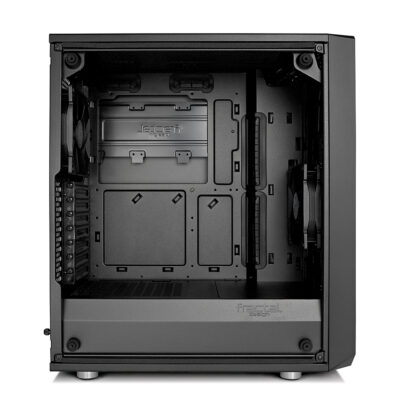

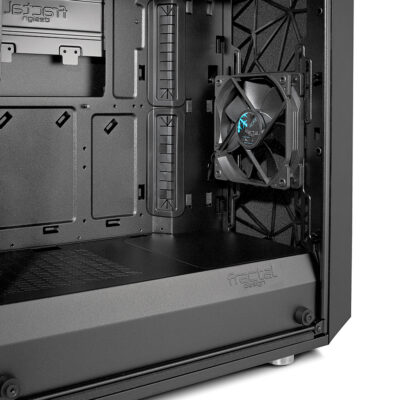

- Open interior layout creates an unobstructed airflow path from front intake to rear exhaust

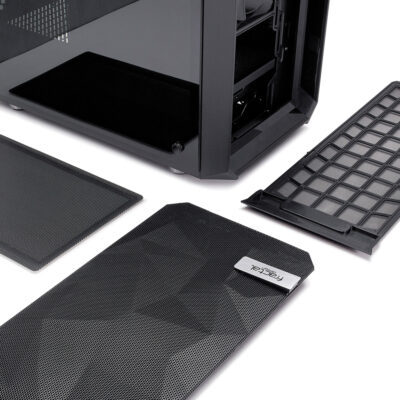

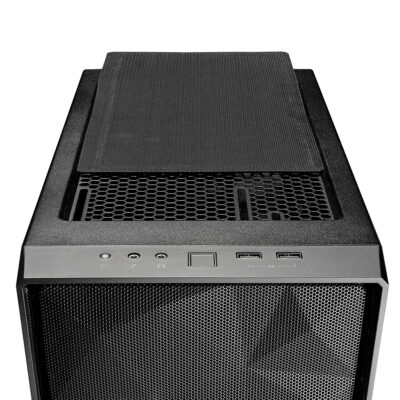

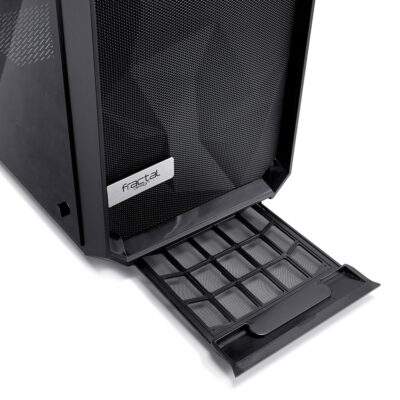

- Easy-to-clean filters on the front, top, and base with full PSU coverage and convenient front access

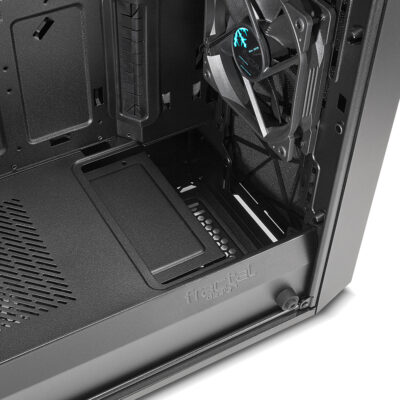

- Full-length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior

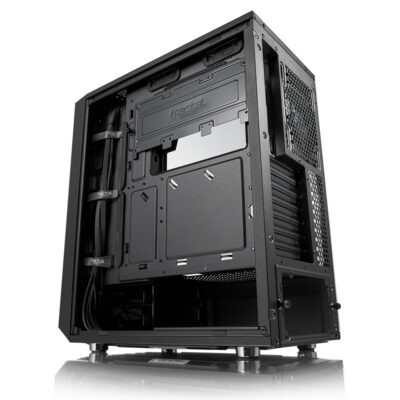

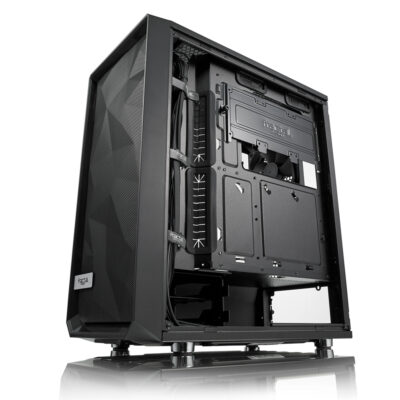

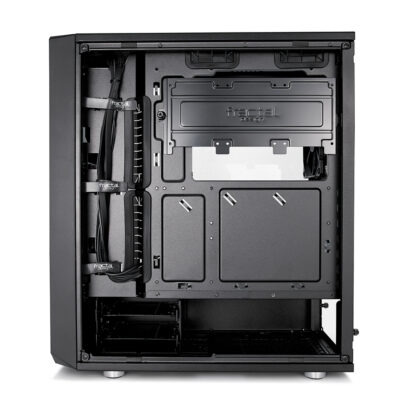

- Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Specification
| 3.5″ or 2.5″ Drive capacity |
2 |
|
Dedicated 2.5″ drive capacity |
3 (maximum 2.5″ drive thickness is 12mm) |
|

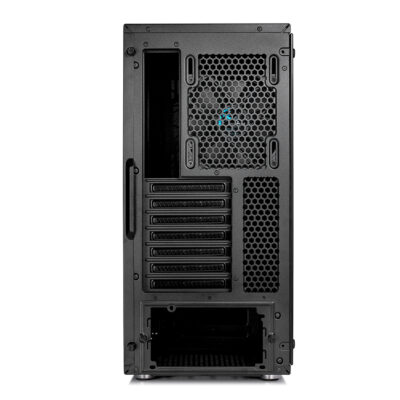

Expansion slots |
7 |
|
Motherboard compatibility |
ATX, mATX, ITX |
|
Power supply type |
ATX |
|
Total fan mounts |
7 |
|
Front fan |
3x 120 or 2x 140 1x Dynamic X2 GP-12 included |
|
Top fan |
2x 120/140 |
|
Rear fan |
1x 120 1x Dynamic X2 GP-12 included |
|
Bottom fan |
1x 120 |
|
Side fan |
No |
|
Dust filters |
Bottom fan + PSU Front fans Top fans |
|
Front radiator |
120/240/360mm 140/280mm |
|
Top radiator |
120/240mm (max component height on motherboard 40mm) |
|
Rear radiator |
120mm (max width 125mm) |
|
Power supply depth limit |
Maximum 175mm recommended |
|
Graphics card length limit |
Max 315mm with front fan mounted |
|
CPU cooler height limit |
172mm |
|
Cable routing |
15-35mm space |
|
Cable routing grommets |
Yes |
|
Fixed velcro straps |
Yes |
|
Captive thumbscrews |
Right side panel SSD brackets |
|
Left side panel |
Tempered Glass |
|
Case dimensions (LxWxH) |
395 x 212 x 440mm |
|
Case dimensions – with feet/protrusions/screws |
409 x 217 x 453mm |
|
Net weight |
6.5 kg |
|
Package dimensions (LxWxH) |
543 x 295 x 484mm |
|
Package weight |
7.9 kg |
Package Contents
- Meshify C TG Dark Tint computer case
- User manual
- Accessory box
- Top filter
Additional information
- EAN : 7350041084891
- UPC : 817301014892
- JAN : 4537694243254
- Product code : FD-CA-MESH-C-BKO-TG
