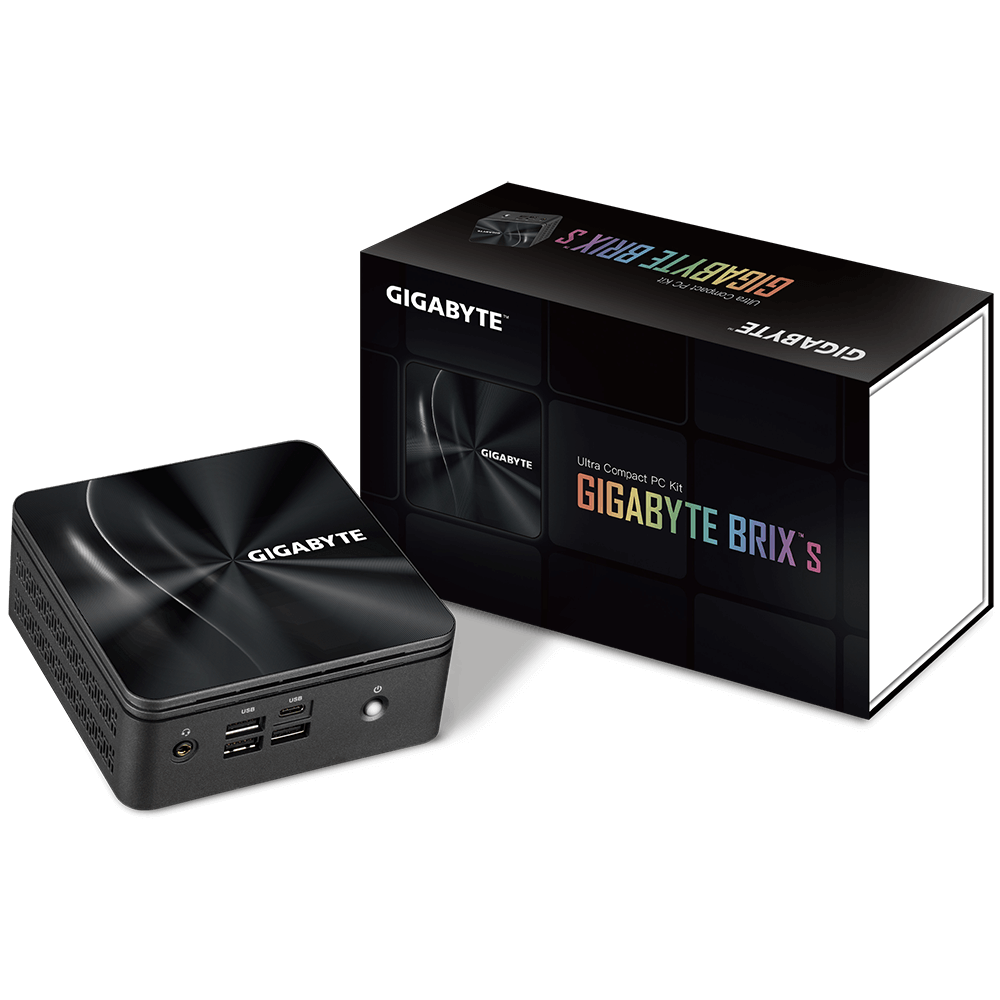

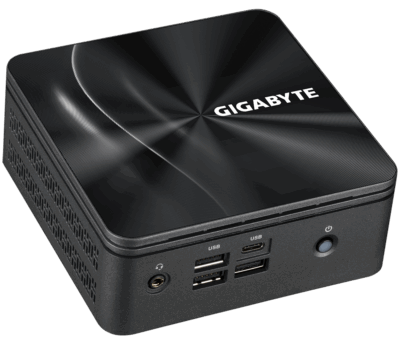

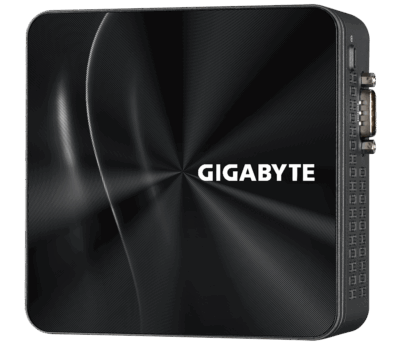

Gigabyte BRIX GB-BRR7H-4800 – AMD RYZEN R7-4800U 2 GHz – Barebone

EAN: 4719331600631SKU: GB-BRR7H-4800Categorie: Merk:

€ 524,99€ 433,88 incl. btwexcl. btw

Nooit meer leverbaar

Gigabyte BRIX GB-BRR7H-4800 – Barebone – Ultra Compact PC Kit – 1 x AMD RYZEN R7-4800U, 2.0G~4.1G Turbo, 8C/16T Core – AMD Radeon™ Graphics – 2.5GigE – Intel WiFi6 AX200 / BT 5.2

GB-BRR7H-4800 (rev. 1.0) - Mini-PC Barebone (BRIX)
    • High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
    • Ultra compact PC design in 2 size (Slim /HDD)
    • Supports 2.5″ HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3)
    • 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
    • 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
    • Intel WIFI6 +BT5.2
    • Realtek 2.5G LAN RTL8125
    • QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
    • RS232 COM port in HDD version
    • 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
    • Realtek ALC255 Codec
    • Headphone Jack
    • VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
    • AC-DC adapter : 100-240V input, 19V/90W
    • OS Support : Microsoft Windows 10 64Bit
    • 1x Kensington Lock slot
    • System Environment Operating Temperature: 0°C to +35°C
    • System Storage Temperature: -20°C to +60°C
    • Option Daughter board support, 2nd COM port + LAN

* Datasheet Download

Small Outside, Powerful Inside

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with pure black stylish chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
AMD Ryzen 4000U Overview

AMD Ryzen 4000U series processors are based on the 7nm technology offering an incredible power efficiency leap. These new processors sport the Zen 2 core technology with 15% higher instructions per clock and 20% lower SOC power.

BEST CPU CORE

15% Higher Instructions Per Clock
Higher Clock Frequency

7nm TECHNOLOGY

2x Transistor Density Leadership Technology

POWER EFFICIENT

20% Lower SOC Power
2x Performance Per Watt

Connectivity

GIGABYTE BRIX AMD Ryzen 4000U series offer a plethora of available connections. All models provide multiple ports from Type-C connection all the way to AC Wi-Fi connectivity to 4x monitor outputs able to cover the needs of a business all the time.
  • Dimension
    4‎6.8 mm x 119.5 mm x 119.5 mm (1.8″ x 4.7″ x 4.7″)
  • Motherboard Size
    105 x 110 mm
  • CPU
    AMD RYZEN R7-4800U 2.0G~4.1G Turbo, 8C/16T Core, 12MB L3 Cache
    AMD Radeon GPU 1750Mhz , 15W
  • Memory
    2 x SO-DIMM DDR4 slots
    3200MHz
    Max. 64GB
  • LAN
    2.5G LAN (Realtek 8125)
  • Wifi Card
    Intel WiFi6 AX200 / BT 5.2
  • Audio
    Realtek ALC255
  • Video
    AMD Radeon™ Graphics
  • HDMI Resolution (Max.)
    HDMI2.0a ws HDCP 2.2
    3840×2160@60Hz
  • Storage
    Supports 2.5″” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
    1 x M.2 slot (2280_storage)
    PCIe Gen3 X4 /SATA
  • Expansion Slots
    1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

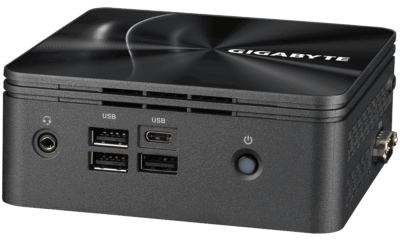

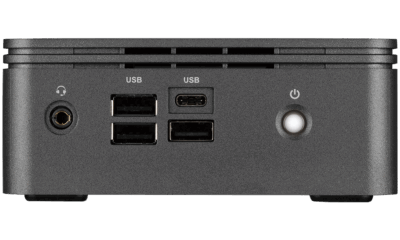

  • Front I/O
    1 x Power Button
    1 x USB 3.2 type C (Gen2) w/ DP alt mode
    3 x USB type A 3.2 (Gen1)
    1 x head phone jack with MIC

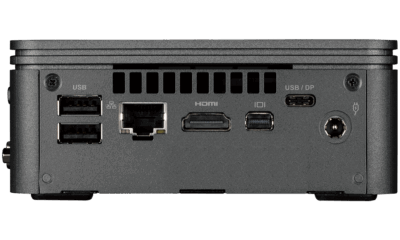

  • Rear I/O
    1 x HDMI(2.0a)
    1 x mDP
    1 x USB 3.2 type C (Gen2) w/ DP alt mode
    2 x USB 3.2 type A (Gen 1)
    1 x RJ45
    1 x DC-In

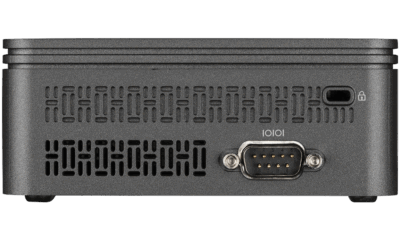

  • Side I/O
    1 x Kensington lock slot
    1 x COM port
  • Power Supply
    Input: AC 100-240V
    Output: DC 19V/4.74A, 90W
  • Support OS
    Win10 64bit
  • Environment
    Operating Temperature 0°C to 35°C
    Storage Temperature -20°C to +60°C
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
EAN

4719331600631
Multi-Core Technologie

Processor

RAM

Geheugentype

Geheugengrootte

Harde schijf

Graphics controller
