KEY FEATURES
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance

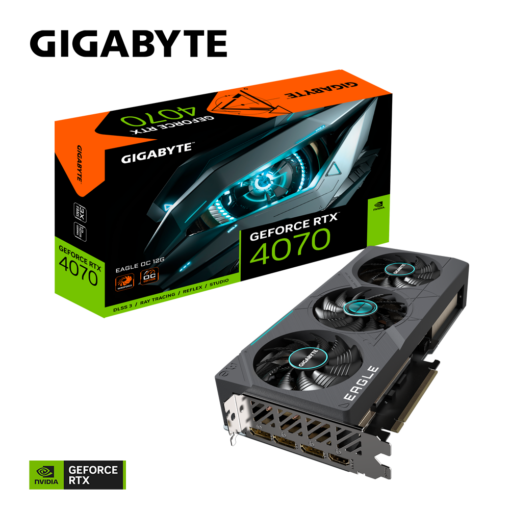

- Powered by GeForce RTX™ 4070
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
CORE CLOCK
2505 MHz (Reference Card: 2475 MHz)
-
Graphics ProcessingGeForce RTX™ 4070
-
Core Clock2505 MHz (Reference Card: 2475 MHz)
-
CUDA® Cores5888
-
Memory Clock21 Gbps
-
Memory Size12 GB
-
Memory TypeGDDR6X
-
Memory Bus192 bit
-
Card BusPCI-E 4.0
-
Digital max resolution7680×4320
-
Multi-view4
-
Card sizeL=261 W=126 H=50 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU650W
-
Power Connectors8 Pin*1
-
OutputDisplayPort 1.4a *3
HDMI 2.1a *1 -
AccessoriesQuick guide
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
