• Graphics Processing

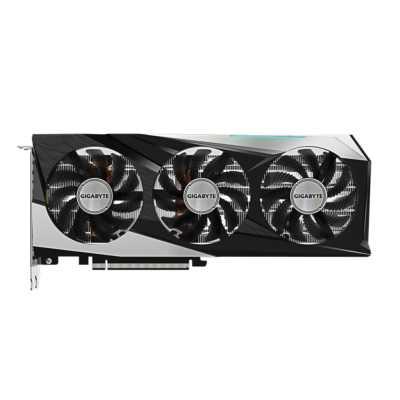

    Radeon™ RX 7600
  • Core Clock
    Boost Clock* : up to 2755 MHz (Reference card: 2655 MHz)
    Game Clock* : up to 2355 MHz (Reference card: 2250 MHz)
  • Stream Processors
    2048
  • Memory Clock
    18 Gbps
  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Bus
    128 bit
  • Card Bus
    PCI-E 4.0
  • Digital max resolution
    7680×4320
  • Multi-view
    4
  • Card size
    L=282 W=115 H=50 mm
  • PCB Form
    ATX
  • DirectX
    12 Ultimate
  • OpenGL
    4.6
  • Recommended PSU
    550W
  • Power Connectors
    8 pin*1

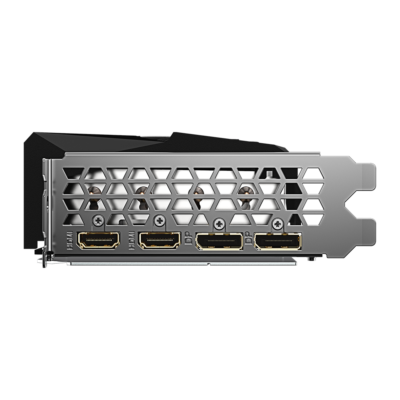

  • Output
    DisplayPort 1.4a *2
    HDMI 2.1a *2
  • Accessories
    Quick guide
  • Note
    * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
    * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
