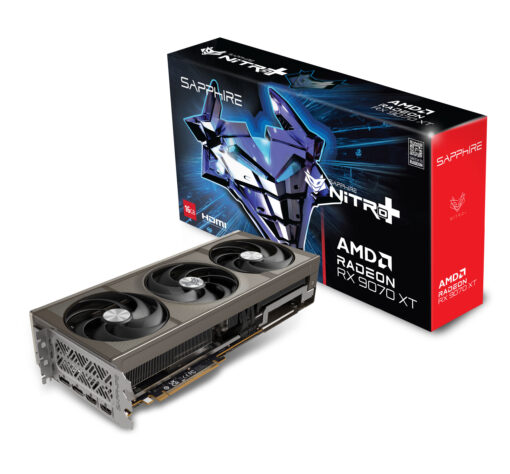

Sapphire NITRO+ AMD Radeon RX 9070 XT – 16 GB GDDR6
€ 999,00
Sapphire NITRO+ AMD Radeon™ RX 9070 XT – Grafische kaart – Radeon RX 9070 XT – 16 GB GDDR6 – PCIe 5.0 x16 – 2 x HDMI, 2 x DisplayPort
Beschikbaar via nabestelling
NITRO+ AMD Radeon™ RX 9070 XT GPU
- GPU: Boost Clock: Up to 3060 MHz
- GPU: Game Clock: Up to 2520 MHz
- Memory: 16GB/256 bit DDR6. 20 Gbps Effective
- Stream Processors: 4096
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 64
AMD RDNA™ 4 Architecture
16GB of GDDR6 memory
AMD HYPR-RX with AFMF 2
DisplayPort™ 2.1a
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology
Specifications
GPU
AMD RDNA™ 4 Architecture
Engine Clock
- Boost Clock: Up to 3060 MHz
- Game Clock: Up to 2520MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
Compute Units
Infinity Cache
Ray Accelerators
AI Accelerator
Memory Size/Bus
Memory Clock
Displays
Resolution
- HDMI®: 7680×4320
- DisplayPort™ 2.1a: 7680×4320
Interface
PCI-Express 5.0 x16
Output
- 2x HDMI®
- 2x DisplayPort™ 2.1a
BIOS Support
- UEFI
Game Index
4K
Sapphire Features
- Quick Connect MagniPlate
- STEALTH Hidden Power Cable
- 12V-2×6(H++) External Power Connector (3×8-pin power adapter is also included if your PC’s Power Supply Unit does not have 12V-2×6)
- Honeywell PTM7950 Thermal Interface Material (TIM)
- AeroCurve Fan Blade
- Free Flow
- FrameDefense
- Integrated Cooling Module
- Cold Rolled Steel Frame
- Tri-X Cooling Technology
- High TG Copper PCB
- Optimized Composite Heatpipes
- Metal Backplate
- ARGB Light Bar
- Fan Quick Connect
- Two-Ball Bearing Fans
- Premium 16-Phase Digital Power Design
- Fuse Protection
- Intelligent Fan Control
- Precision Fan Control
- TriXX Supported
- Performance vs. Efficiency Quicksets
- Glow!
- Fan Check
- TriXX Boost
- External RGB LED MB Synchronization
Accessories Bundled
- L-Shape Support Bracket
- 3pin 5V ARGB Cable
- Magnetic Backplate
- 12V-2×6(H++) to PCI Express 3×8-pin power adapter
AMD Features
- AMD RDNA™ 4 Architecture
- 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- AMD HYPR-RX with AFMF 2
- AMD FidelityFX™ Super Resolution 4 with AI Upscaling
- DisplayPort™ 2.1a
- AMD Radiance Display™ Engine
- AMD Fluid Motion Frames 2 technology
- AMD Radeon™ Anti-Lag 2 technology
- AV1 Encode/Decode
- AMD FidelityFX™ technologies
- Microsoft® DirectX® 12 Ultimate
- AMD Noise Suppression
- AMD Freesync™ technology
- 16 GB of GDDR6 on 256-bit Memory Bus
- AMD smart technologies
- AMD Software: Adrenalin Edition™ application
Cooler Type
- Tri-X Cooling
- AeroCurve Fan Blade
- Free Flow
- Integrated Cooling Module
- High TG Copper PCB
- Optimized Composite Heatpipes
- Two-Ball Bearing
Form Factor
Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm
Power Consumption
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
- Minimum 750 Watt Power Supply
- 12V-2×6(H++) Power Connector (3×8-pin power adapter is also included if your PC’s Power Supply Unit does not have 12V-2×6)
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
