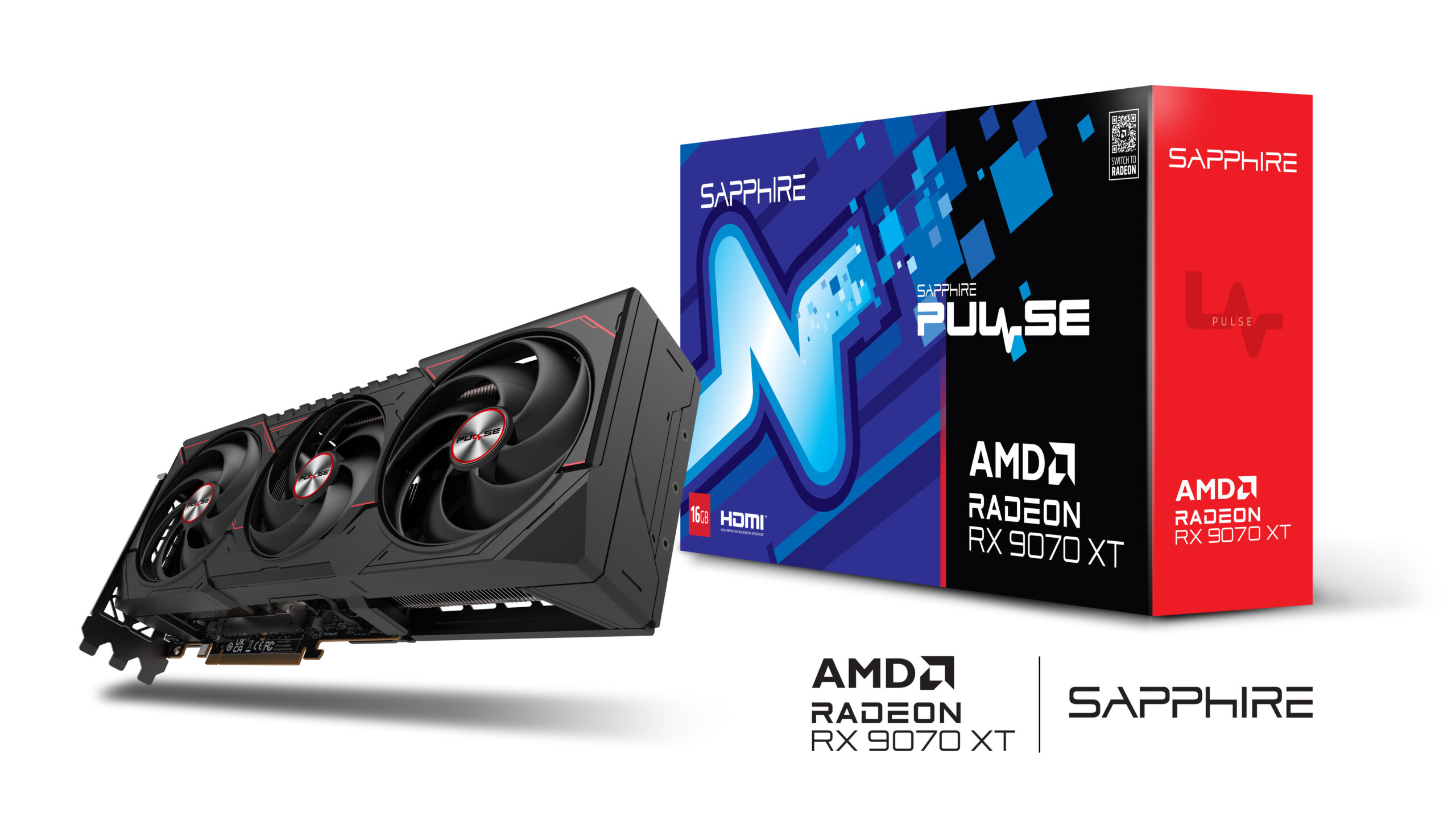

Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6

Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6 - Afbeelding 2

Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6 - Afbeelding 3

Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6 - Afbeelding 4

Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6 - Afbeelding 5

Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6 - Afbeelding 6

Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6 - Afbeelding 7

Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6 - Afbeelding 8

Sapphire PULSE AMD Radeon RX 9070 XT – 16 GB GDDR6

Name: Sapphire PULSE AMD Radeon RX 9070 XT - 16 GB GDDR6
Brand: Sapphire
SKU: 11348-03-20G
Availability: BackOrder

€ 829,00

Sapphire PULSE AMD Radeon RX 9070 XT – Grafische kaart – Radeon RX 9070 XT – 16 GB GDDR6 – PCIe 5.0 x16 – 2 x HDMI, 2 x DisplayPort

Beschikbaar via nabestelling

EAN: 4895106295919 Artikelnummer: 11348-03-20G Categorieën: Componenten, Videokaarten Merk: Sapphire

PULSE AMD Radeon™ RX 9070 XT GPU

GPU: Boost Clock: Up to 2970 MHz
GPU: Game Clock: Up to 2400 MHz
Memory: 16GB/256 bit DDR6. 20Gbps Effective
Stream Processors: 4096
AMD RDNA™ 4 Architecture
Ray Accelerator: 64

AMD RDNA™ 4 Architecture

16GB of GDDR6 memory

AMD HYPR-RX with AFMF 2

DisplayPort™ 2.1a

AMD FidelityFX™ Super Resolution 4 with AI Upscaling

AMD Radiance Display™ Engine

AMD Fluid Motion Frames 2 technology

Specifications

#SKU#: 11348-03-20G SAPPHIRE PULSE AMD Radeon™ RX 9070 XT GPU with 16GB memory, AMD RDNA™ 4 architecture, DisplayPort™ 2.1a

GPU

AMD Radeon™ RX 9070 XT Graphics Card
AMD RDNA™ 4 Architecture

Engine Clock

Boost Clock: Up to 2970 MHz
Game Clock: Up to 2400 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

4096

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

AI Accelerator

128

Memory Size/Bus

16GB/256 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

2x HDMI®
2x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

Sapphire Features

Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
Two-Ball Bearing Fans
14-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
TriXX Boost

Accessories Bundled

L-Shape Support Bracket

AMD Features

AMD RDNA™ 4 Architecture
64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
DisplayPort™ 2.1a
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon™ Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX™ technologies
Microsoft® DirectX® 12 Ultimate
AMD Noise Suppression
AMD Freesync™ technology
16 GB of GDDR6 on 256-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition™ application

Cooler Type

Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing

Form Factor

3 slot, ATX
Dimension: 320(L)X 120.25(W)X 61.6 (H)mm

Power Consumption

304W Typical Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement

Minimum 750 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
Colors of PCB or other components may differ from those illustrated.
SAPPHIRE reserves the right to update or revise specifications without prior notice.
All trademarks and logos are acknowledged as the property of their respective holders.

*The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Afmetingen	32 × 12,025 × 6,16 cm
Grafische processor	AMD Radeon RX 9070 XT
Videogeheugen	16 GB – GDDR6
