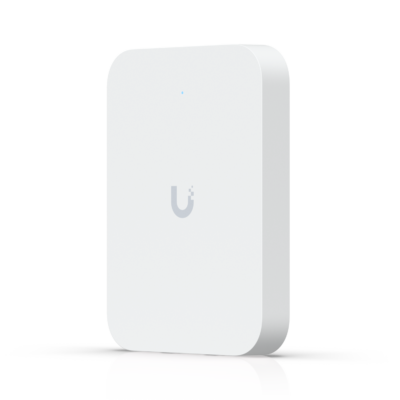

Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 2

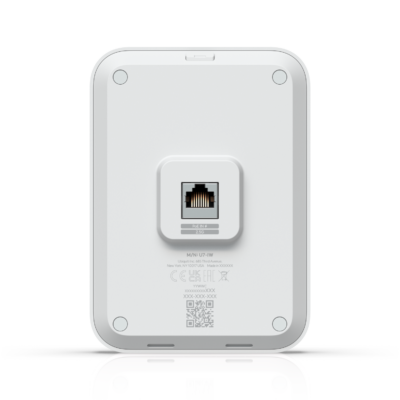

Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 3

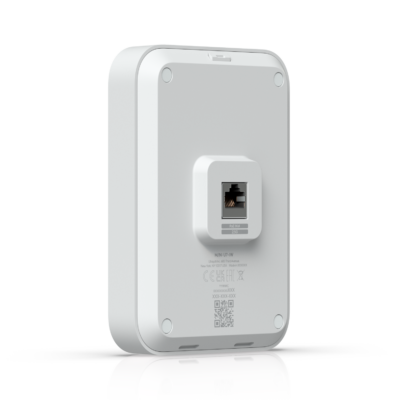

Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 4
Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 5

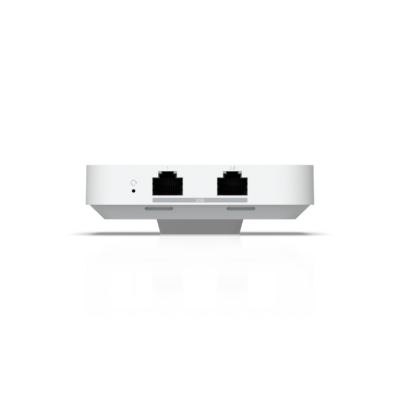

Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 6

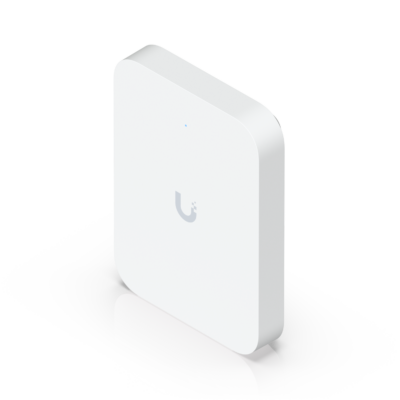

Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 7
Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point
Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 2
Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 3
Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 4

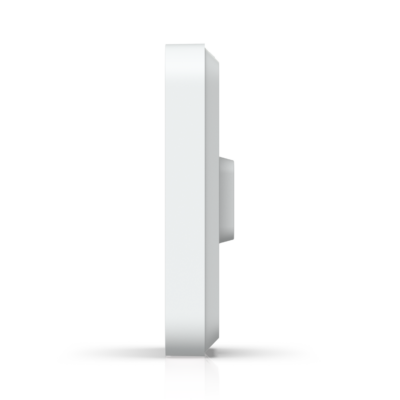

Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 5
Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 6
Ubiquiti UniFi U7 In-Wall - Wi-Fi 7 Access Point - Afbeelding 7

Ubiquiti UniFi U7 In-Wall – Wi-Fi 7 Access Point

€ 158,95

12 op voorraad

Neem deze erbij als je nog geen PoE+ switch hebt

uacc-poe-plus-2-5g-1

Ubiquiti UACC-PoE+-2.5G | 2.5G PoE+ Adapter 30W

De Ubiquiti UACC-PoE+-2.5G is een compacte 2.5G PoE+ adapter met maximaal 30 W vermogen. Je voedt een geschikt UniFi-apparaat via de netwerkkabel, ook wanneer je switch geen PoE levert. De adapter ondersteunt een 2,5 GbE-verbinding en heeft ingebouwde bescherming tegen overspanning, stroompieken en overstroom. Inclusief geaarde voedingskabel.

Ubiquiti

Ubiquiti UniFi 7 In-Wall Wi-Fi 7 Access Point – Indoor – WiFi 7 dual-radio – 4 spatial streams – PoE/PoE+ – 2.5 GbE uplink – (PoE injector not included)

EAN: 0810084698754 SKU: U7-IW Categorieën: , , , Tag: Merk:
U7 In-Wall
U7-IW

Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Note. PoE+ input required for single-port PoE output.

Access Point U7 In-WallAccess Point U7 In-Wall

Installation Guide

Overview
Dimensions
137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2″)
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
200+
Uplink
2.5 GbE
Mounting Locations
Wall
Mounting Plate
Metal wall mount (Included)
Power Method
PoE PoE+ (Required for PoE output)
Performance
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
8 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
13W (Excluding PoE output)
Supported Voltage Range
42.5—57V DC
Networking Interface
(3) 2.5 GbE RJ45 ports
Weight
400 g (14.1 oz)
Management
Ethernet
Built-In Switch
(1) PoE+ input and (1) PoE output
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Aluminum alloy
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
UniFi OS
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later

Gewicht 0,6 kg
Afmetingen 20 × 15 × 7 cm
