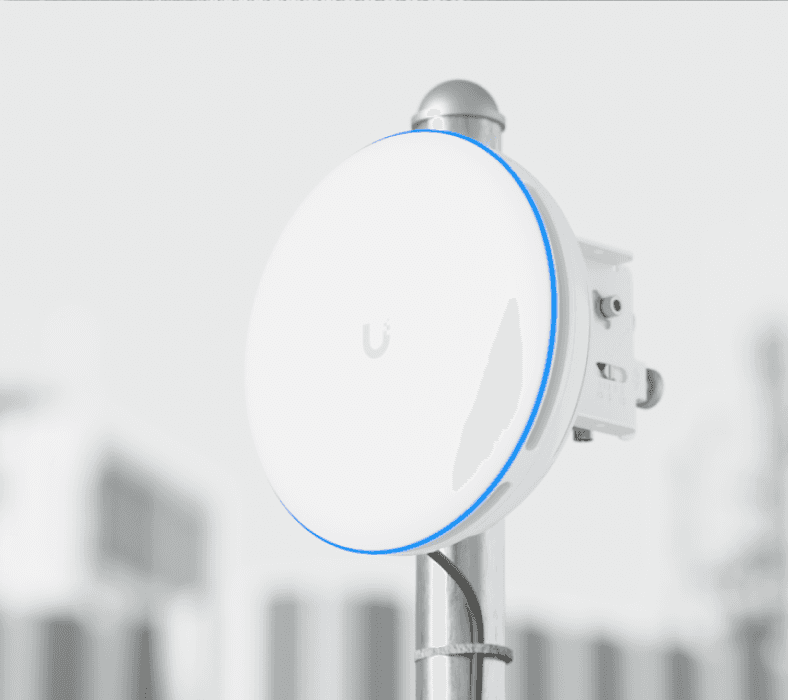

Ubiquiti UniFi Building Bridge XG
€ 1.069,00
Ubiquiti UniFi Building Bridge XG – 60 GHz wireless point-to-point bridge – 10G SFP+ uplink
Uitverkocht
Wil je geïnformeerd worden wanneer dit product weer op voorraad is?
Building Bridge XG 2-pack
UBB-XG
A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
Includes (2) PoE power adapters.
Dimensions
Ø191.8 x 59 mm (Ø7.6 x 2.3″)
WiFi Standard
WiFi 5
Spatial Streams
2
Coverage Area
500 m (1,640 ft)

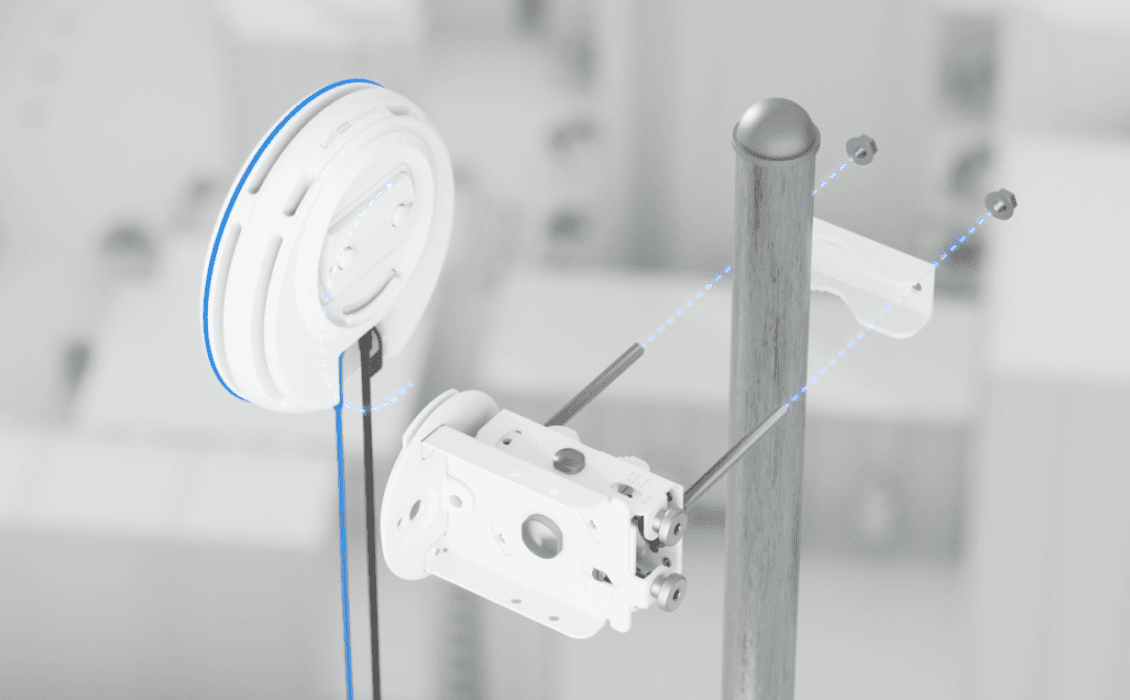

Mounting Locations
Wall, pole
Weatherproofing
IPX6
Power Method
PoE++ Passive PoE
MIMO
5 GHz
2 x 2 (DL MU-MIMO)
Max. Data Rate
60 GHz
6 Gbps
5 GHz
866.6 Mbps (BW80)
Antenna Gain
60 GHz
21 dBi
5 GHz
14 dBi
2.4 GHz
2 dBi (BLE)
Max. TX Power
60 GHz
16 dBm
5 GHz
23 dBm
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
Wireless Security
WPA2 AES
Max. Power Consumption
29W
Includes PoE Adapter
✓
Supported Voltage Range
48V DC ± 10%
Networking Interface
(1) GbE RJ45 port (1) 1/10G SFP+ port
Weight
Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb)
Operating Modes
PtP
Wind Loading
56 N at 200 km/h (12.6 lbf at 125 mph)
Pole Mount Diameter
1–2.5″ (25–63.5 mm)
Management
Ethernet Bluetooth
Channel Bandwidth
Main radio (60 GHz) : 2,160/4,320 (MHz) Backup radio (5 GHz) : HT 20/40, VHT 20/40/80 (MHz)
Enclosure Material
Aluminum alloy, UV-resistant polycarbonate
Mount Material
Stainless steel
Button
(1) Factory-reset
LEDs
System
R/G/B
NDAA Compliant
✓
Certifications
CE, FCC, IC, terragraph
Operating Frequency
Main radio (60GHz): 57 – 66 GHz Backup radio (5GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz
Bluetooth (MHz)
Worldwide: 2,400 – 2,483.5
Ambient Operating Temperature
-40 to 55° C (-40 to 131° F)
Ambient Operating Humidity
5 to 95% noncondensing
| Gewicht | 7,4 kg |
|---|---|
| Afmetingen | 48 × 25 × 24 cm |
