G6 PTZ
UVC-G6-PTZ

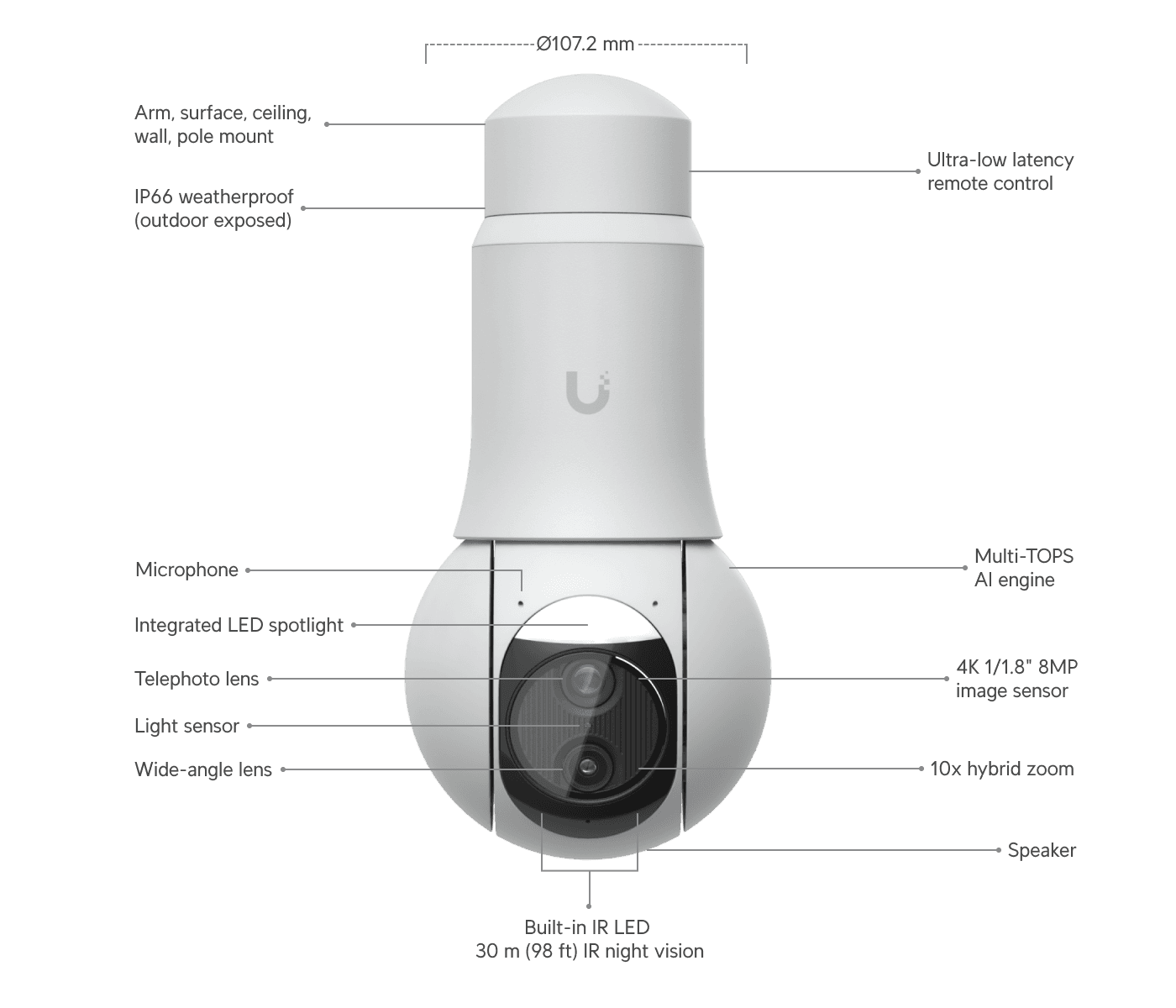

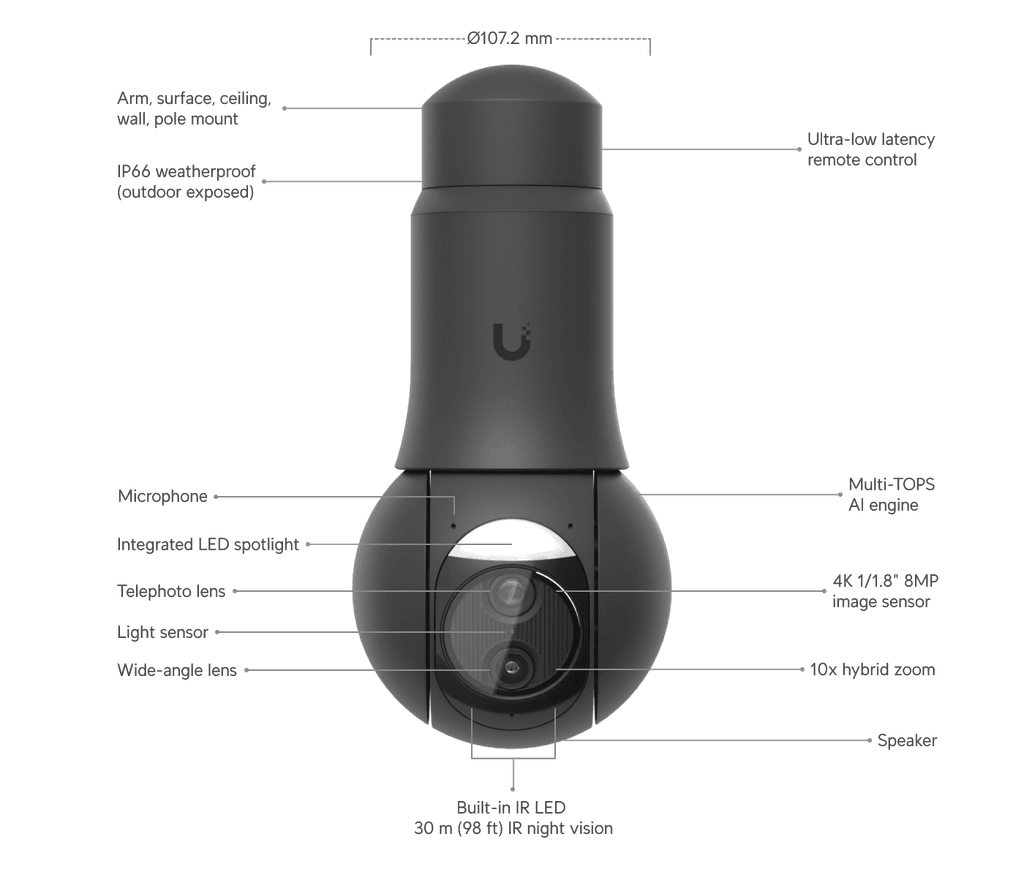

All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8″ 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.
Dimensions

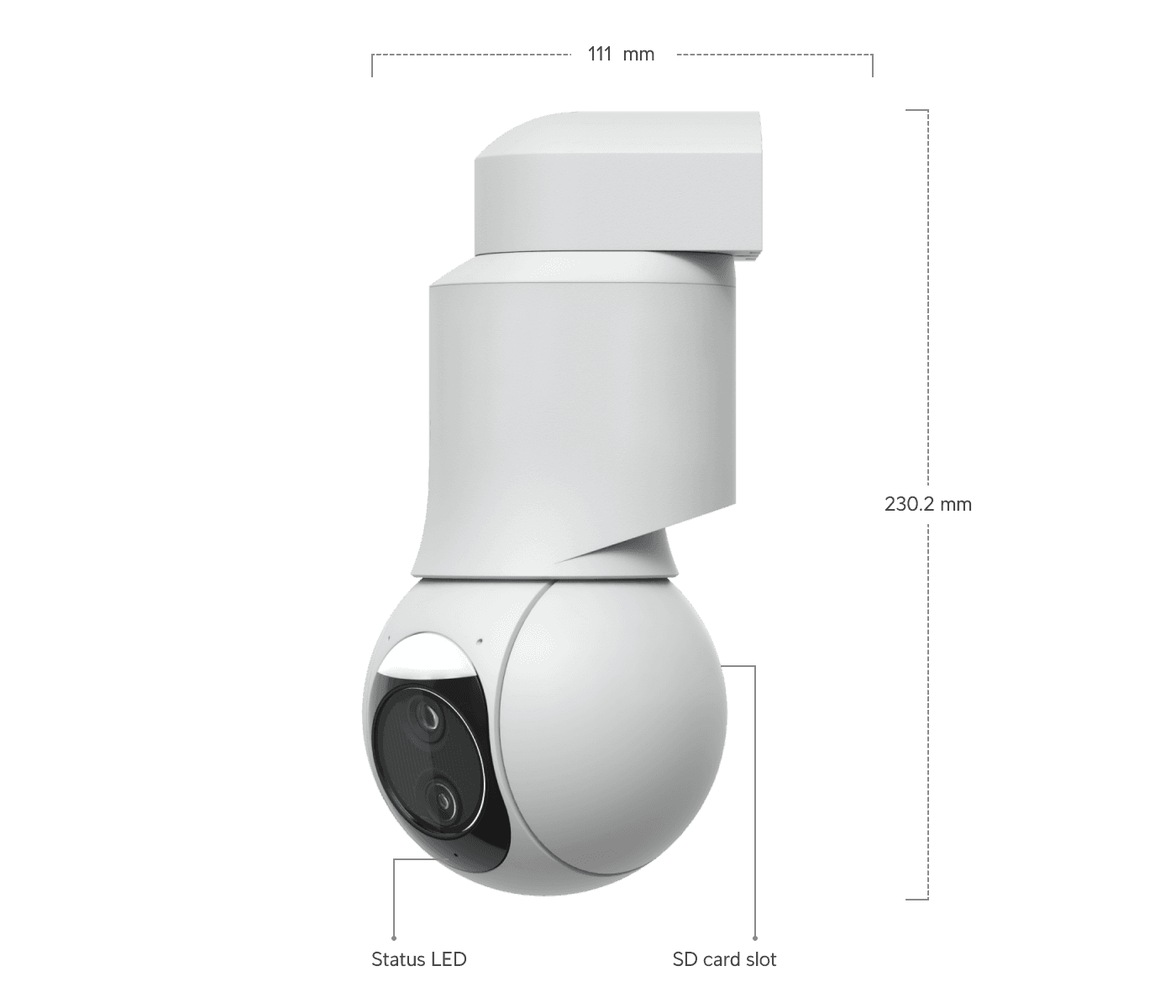

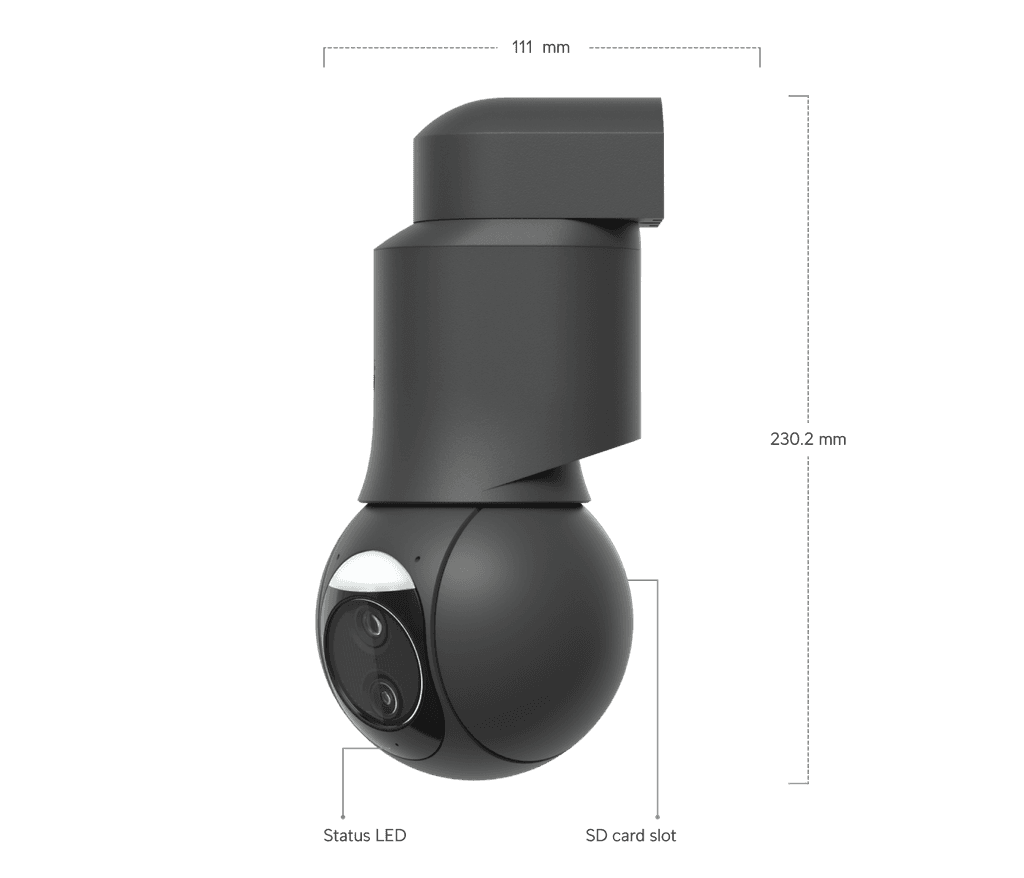

Without mount: Ø107.2 x 104.5 x 203.2 mm (Ø4.2 x 4.1 x 8″) With mount: Ø107.2 x 111 x 230.2 mm (Ø4.2 x 4.8 x 9.1″)
IR Night Vision
30 m (98 ft)
Zoom Mode
10x Hybrid
Face Recognition
✓
License Plate Recognition
✓
Smart Detections (People, Vehicles, Animals)
✓
Resolution
4K
Field of View
Wide: H: 109.9°, V: 56.7°, D: 134.1° Tele: H: 26.6°, V: 15.1° , D: 30.4°
Pan-Tilt Range
Pan: 350° Tilt: 100°
Audio
Two-way audio
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting

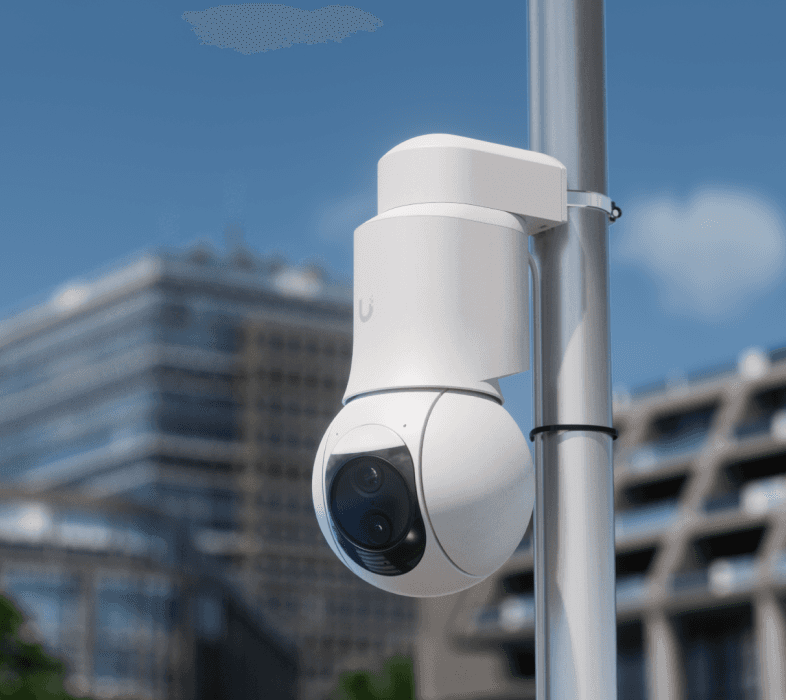

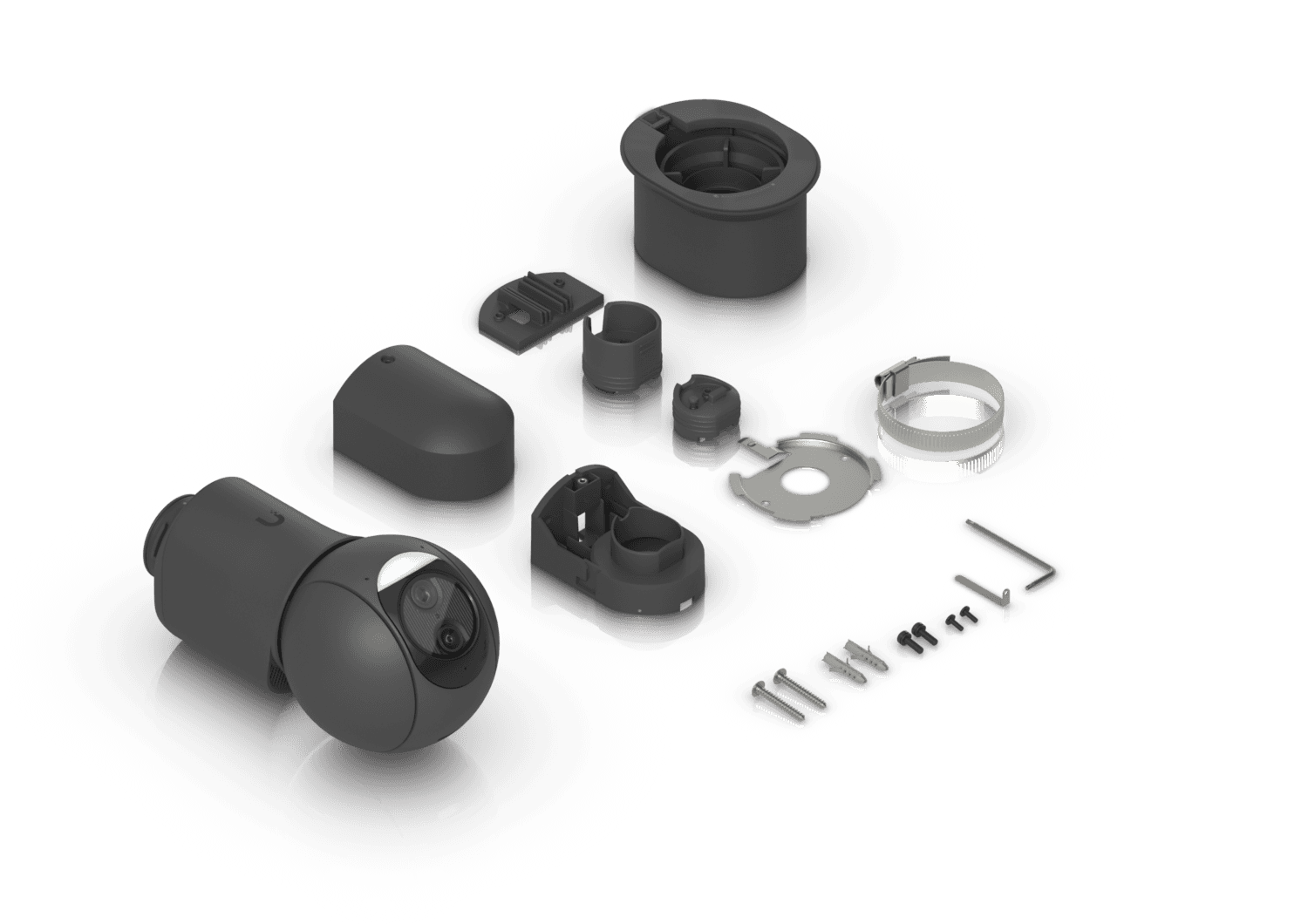

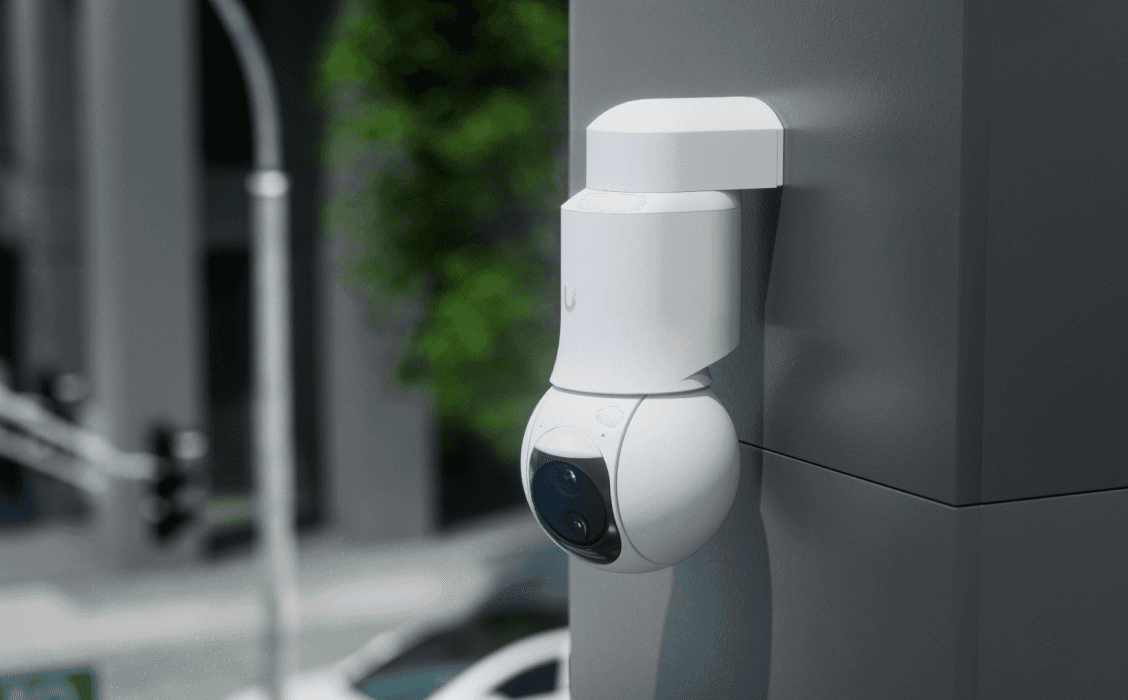

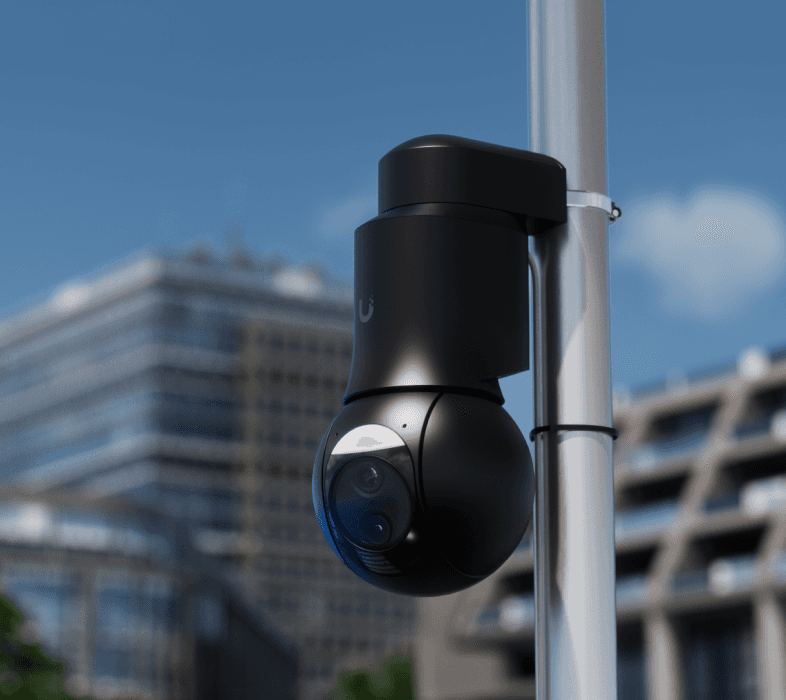

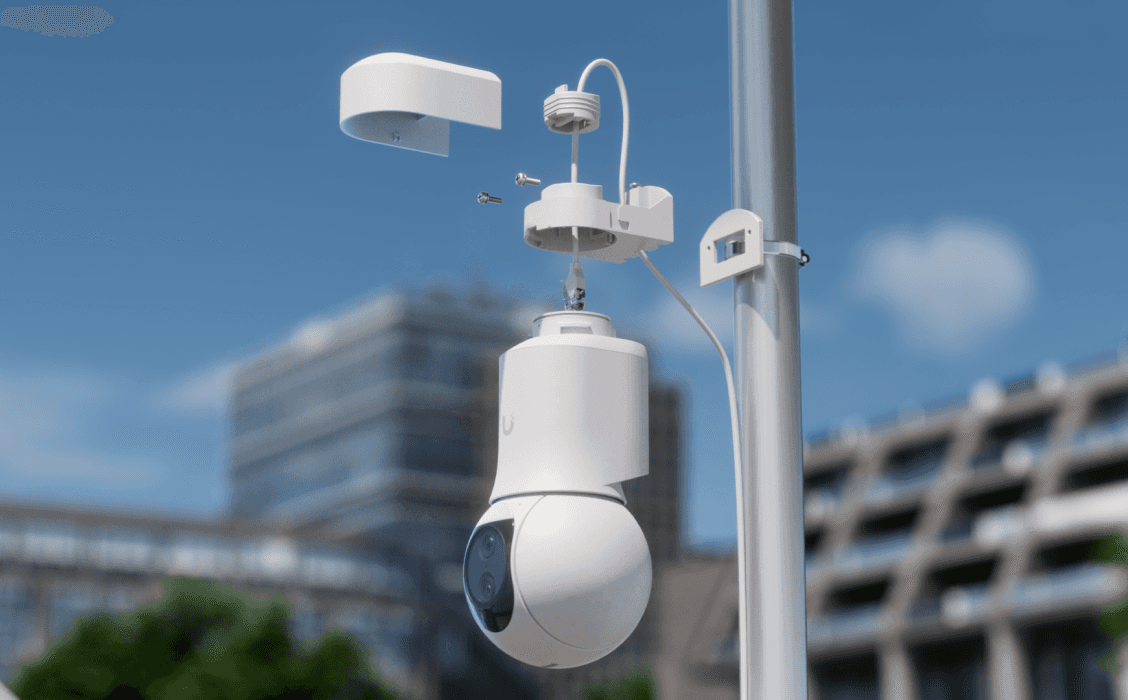

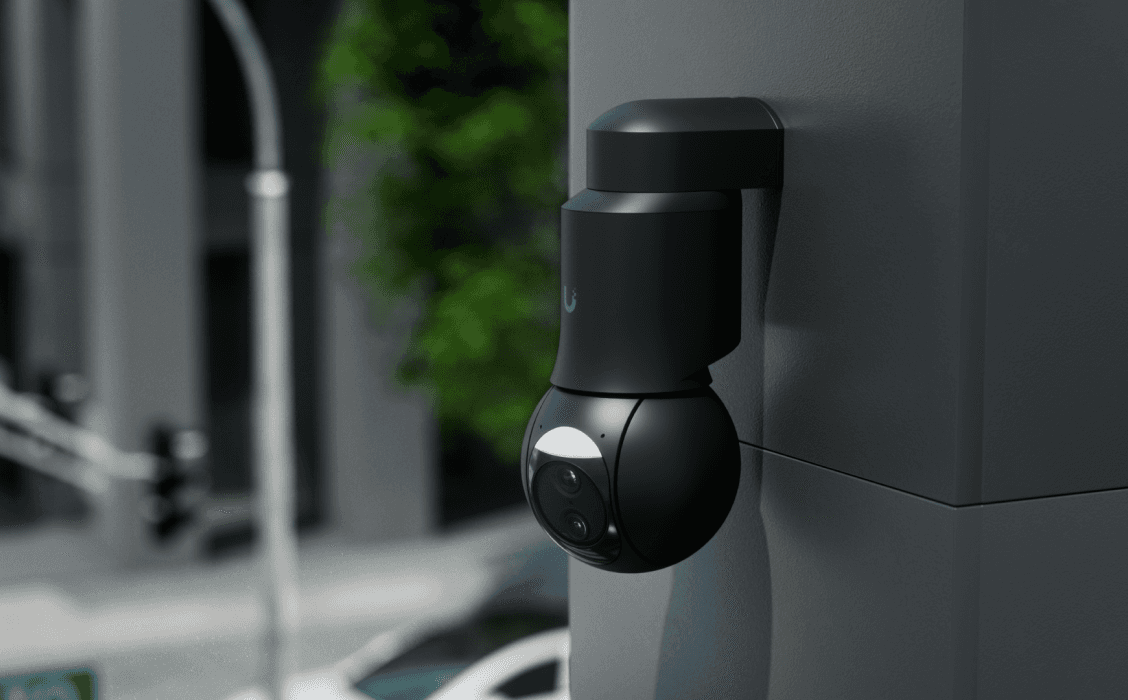

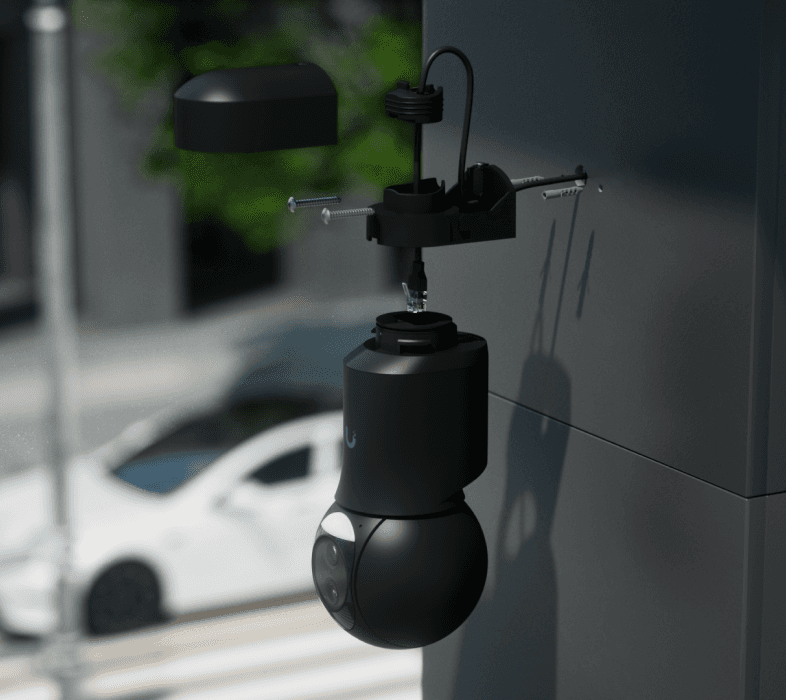

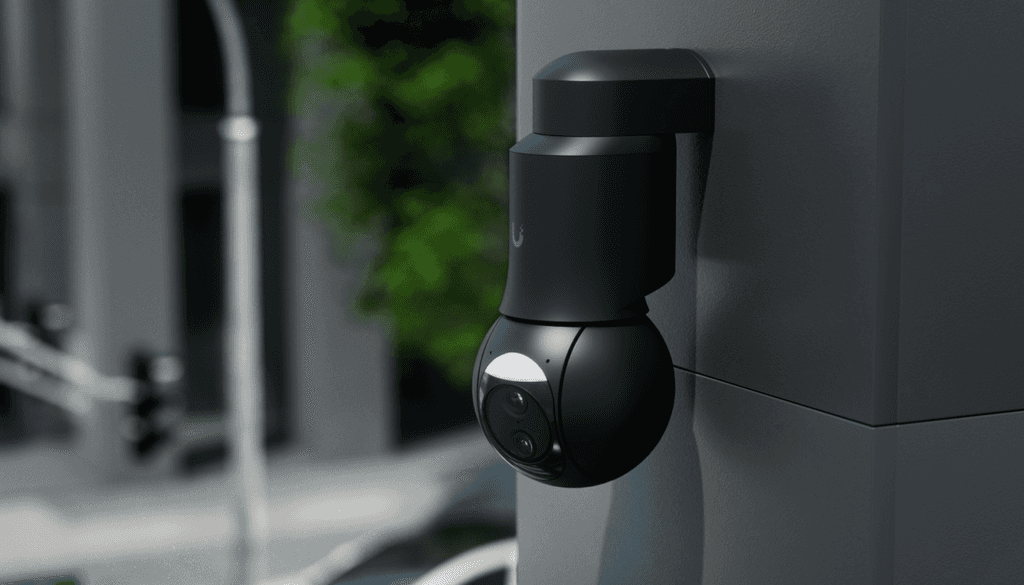

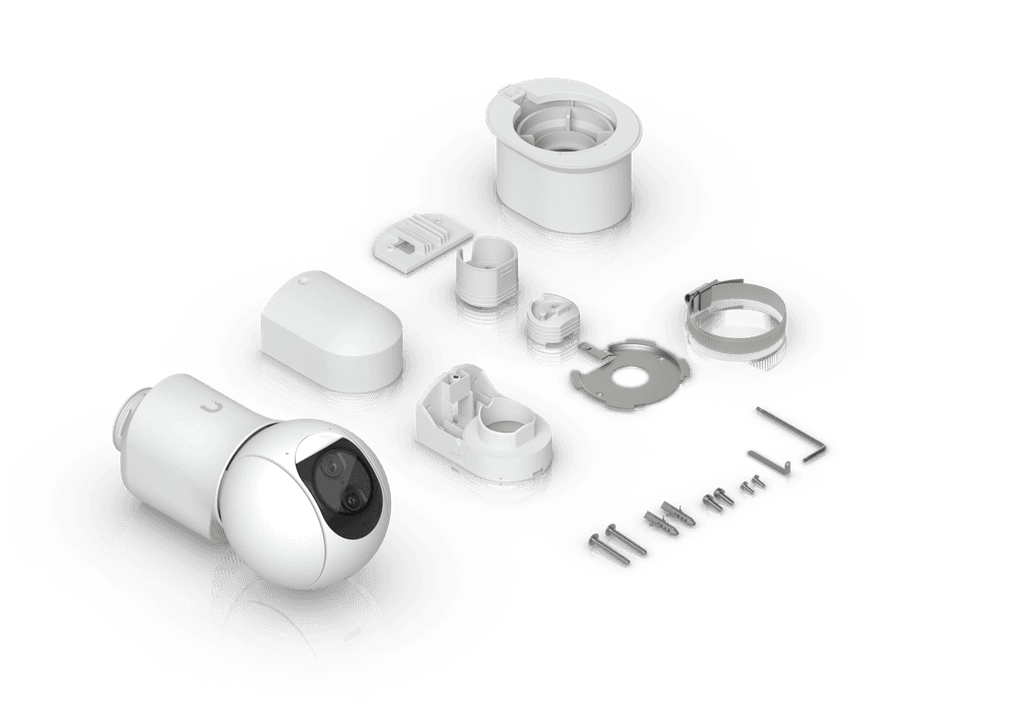

Wall, Surface, Ceiling, Pole mount (Included) Corner, In-Ceiling, Pendant mount, Conduit adapter (Optional)

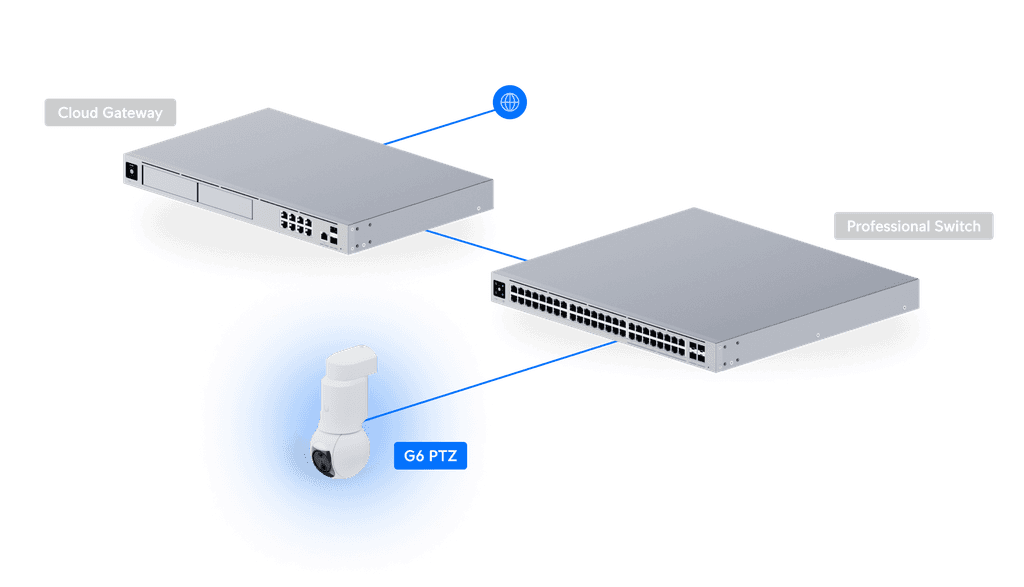

UniFi Application Suite
Protect
✓

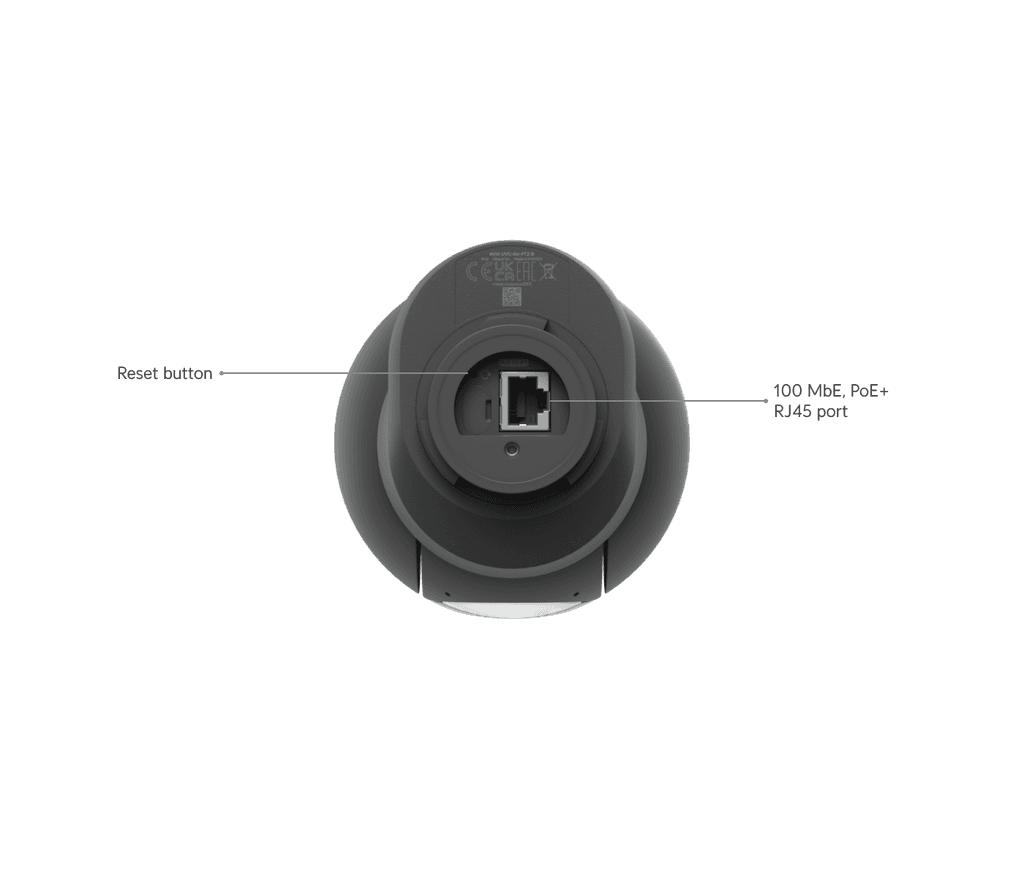

Networking Interface
10/100 MbE RJ45 port
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate
30 FPS
Resolution
8MP 3840 x 2160 (16:9)
Optics
Sensor
Wide: 1/1.8″ 8MP Tele: 1/1.8″ 8MP
Lens
Wide: F 4.46 mm; ƒ/1.65 Tele: F 16.3 mm; ƒ/2.4
Night Mode
Built-in IR LED illumination and IR cut filter
Max. Power Consumption
24.5W
Supported Voltage Range
42.5—57V DC
Power Method
PoE+
Processor
Quad-core Arm® Cortex®-A53 based chip

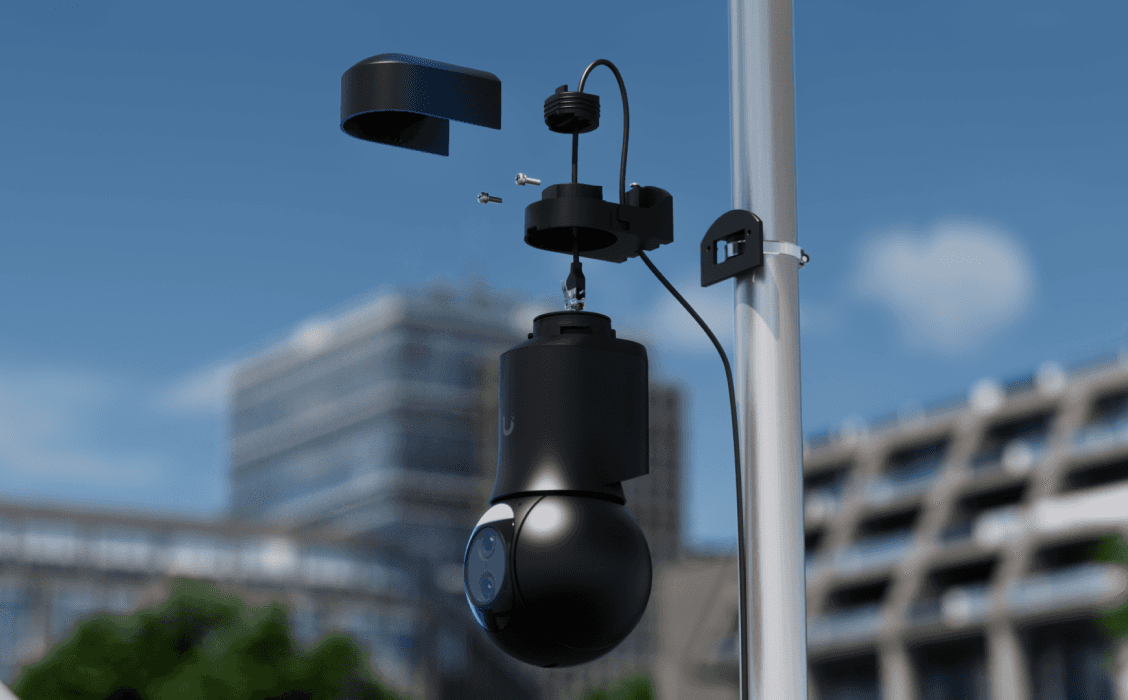

Pole Mount Diameter
1.5–2″ (38–50 mm)
Weight
Without arm mount: 1 kg (2.2 lb) With arm mount: 1.1 kg (2.4 lb)
Enclosure Material
Aluminum alloy, polycarbonate
Mount Material
Arm mount: polycarbonate Pole mount: aluminum alloy
Expansion Slot
MicroSD card

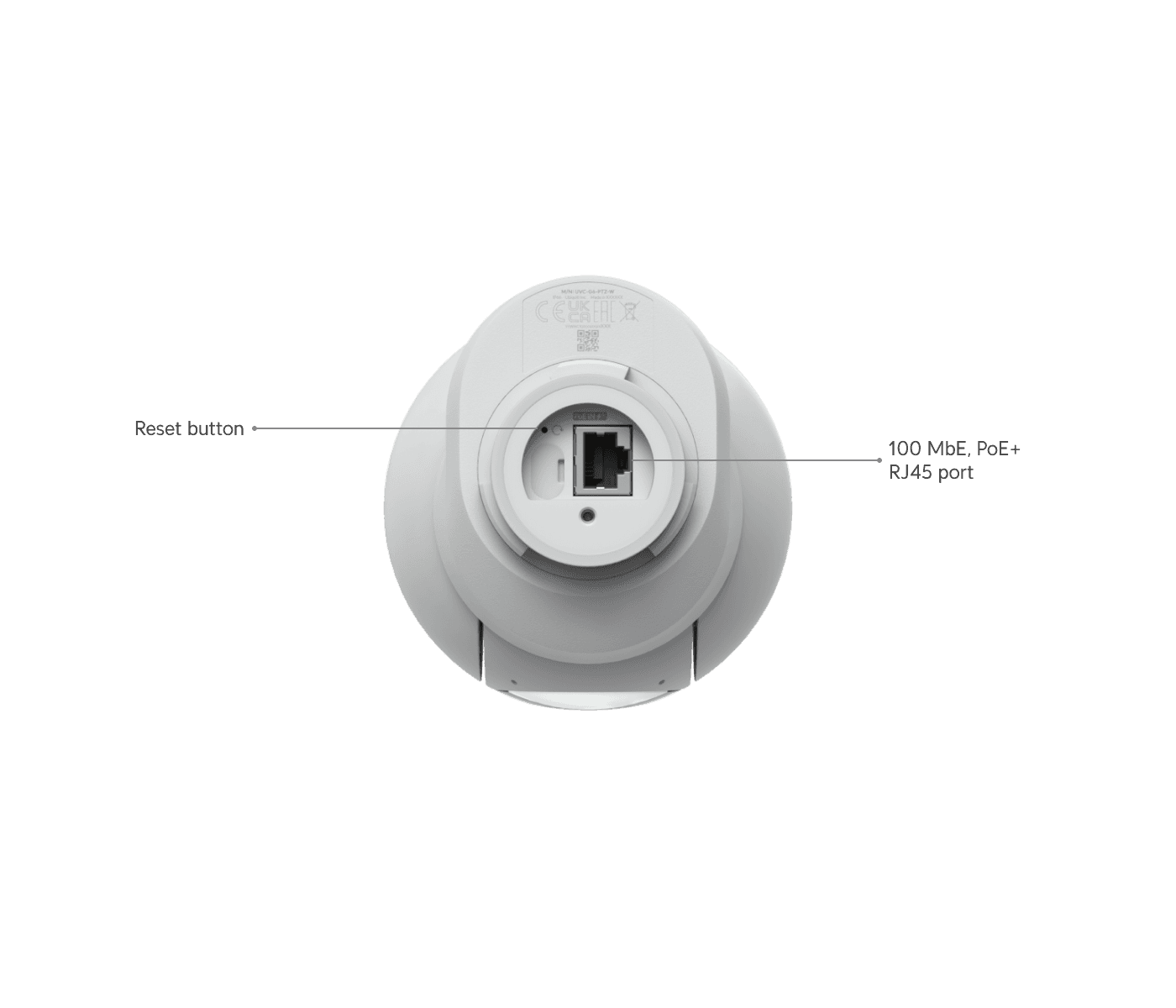

Button
(1) Factory-reset
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
20 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
| Gewicht | 2 kg |
|---|---|
| Afmetingen | 42 × 15 × 15 cm |
| Camera | |
| Interfaces | |
| Max. resolutie | |
| Type optische sensor |
Wees de eerste om “Ubiquiti UniFi Camera G6 PTZ – pan-tilt-zoom – 4K (8MP) video resolution” te beoordelen
Je moet ingelogd zijn om een beoordeling te plaatsen.
FAQ
How does the G6 PTZ combine digital and optical zoom to create 10× hybrid zoom?
The G6 PTZ pairs a fixed wide-angle lens with a 5x telephoto lens. As you zoom in, the camera automatically switches from the wide-angle lens to the telephoto lens to deliver a smooth zoom experience.
Note: While you are still within the wide-angle lens's range, the camera relies on digital zoom which lowers recording resolution prior to switching to the telephoto lens.
What AI capabilities are available on the G6 PTZ?
The G6 PTZ supports person, vehicle, and animal detections as well as Face Recognition and License Plate Recognition.
Which lens is best for face and license plate recognition?
Prioritize the telephoto lens. Its tighter field of view and higher pixel density enable reliable face and license plate recognition over longer distances.
Does the G6 PTZ support patrol mode?
Yes. In patrol mode, the camera must dwell for at least 20 seconds at each waypoint before moving to the next.
Does the G6 PTZ support auto-tracking?
Yes. The camera can automatically track subjects and zoom in on them.
What mounting options are available on the G6 PTZ?

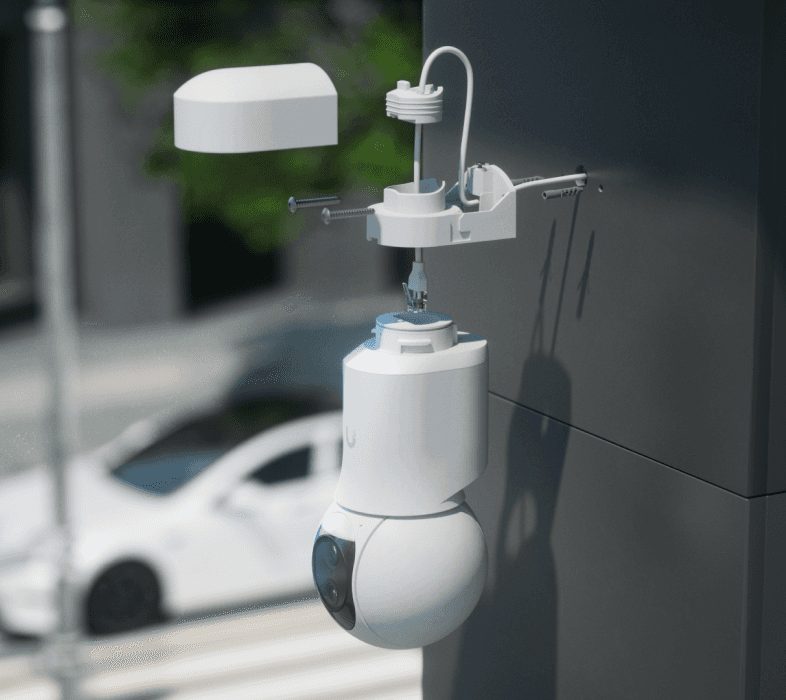

The G6 PTZ supports Wall, Surface, Ceiling, and Pole mounting by default with an optional in-ceiling flush mount. It is backward compatible with the G5 PTZ corner, pendant, and conduit mounts.
