Ubiquiti UniFi Device Bridge

Name: Ubiquiti UniFi Device Bridge
Brand: Ubiquiti
SKU: UDB
Price: 122.27 EUR
Availability: InStock

€ 147,95

Ubiquiti UniFi Device Bridge – wireless bridging PoE adapter

20 op voorraad

Koop met

Ubiquiti UniFi Camera G5 Flex - 2K 4MP - IR LEDs - PoE

Ubiquiti Camera G5 Flex - Netwerkbewakingscamera - 4MP CMOS sensor - 2K, 30 FPS camera - IR - microphone - IPX4 Weather-resistant - IK04 - PoE

Voeg toe voor slechts € 138,90

Ubiquiti UniFi Phone Touch Max - Black

Ubiquiti UniFi Phone Touch Max - Black - 7" touch display - Bluetooth support - PoE+ in

Voeg toe voor slechts € 324,99

Ubiquiti UniFi Dream Machine Special Edition

Voeg toe voor slechts € 504,95

Ubiquiti UniFi 7 Pro - Wi-Fi 7 Access Point

Ubiquiti UniFi 7 Pro Wi-Fi 7 Access Point - Indoor - WiFi 7 tri-radio with 6 GHz - PoE+ - 2.5 GbE uplink - (PoE injector not included)

Voeg toe voor slechts € 188,80

Ubiquiti UniFi 6 Pro - Wi-Fi 6 Access Point

Ubiquiti UniFi 6 Pro Wi-Fi 6 Access Point - Indoor - 2.4 GHz Speed 573.50 Mbps, 5 GHz Speed 4.8Gbps - PoE (48V, 0.5A) - 10/100/1000 Ethernet - (PoE injector not included)

Voeg toe voor slechts € 161,50

Ubiquiti UniFi Cloud Gateway Ultra

Ubiquiti UniFi Cloud Gateway Ultra - LAN: (4) GbE RJ45 ports, WAN: (1) 1/2.5 GbE RJ45 port - 0.96" LCM status display

Voeg toe voor slechts € 116,95

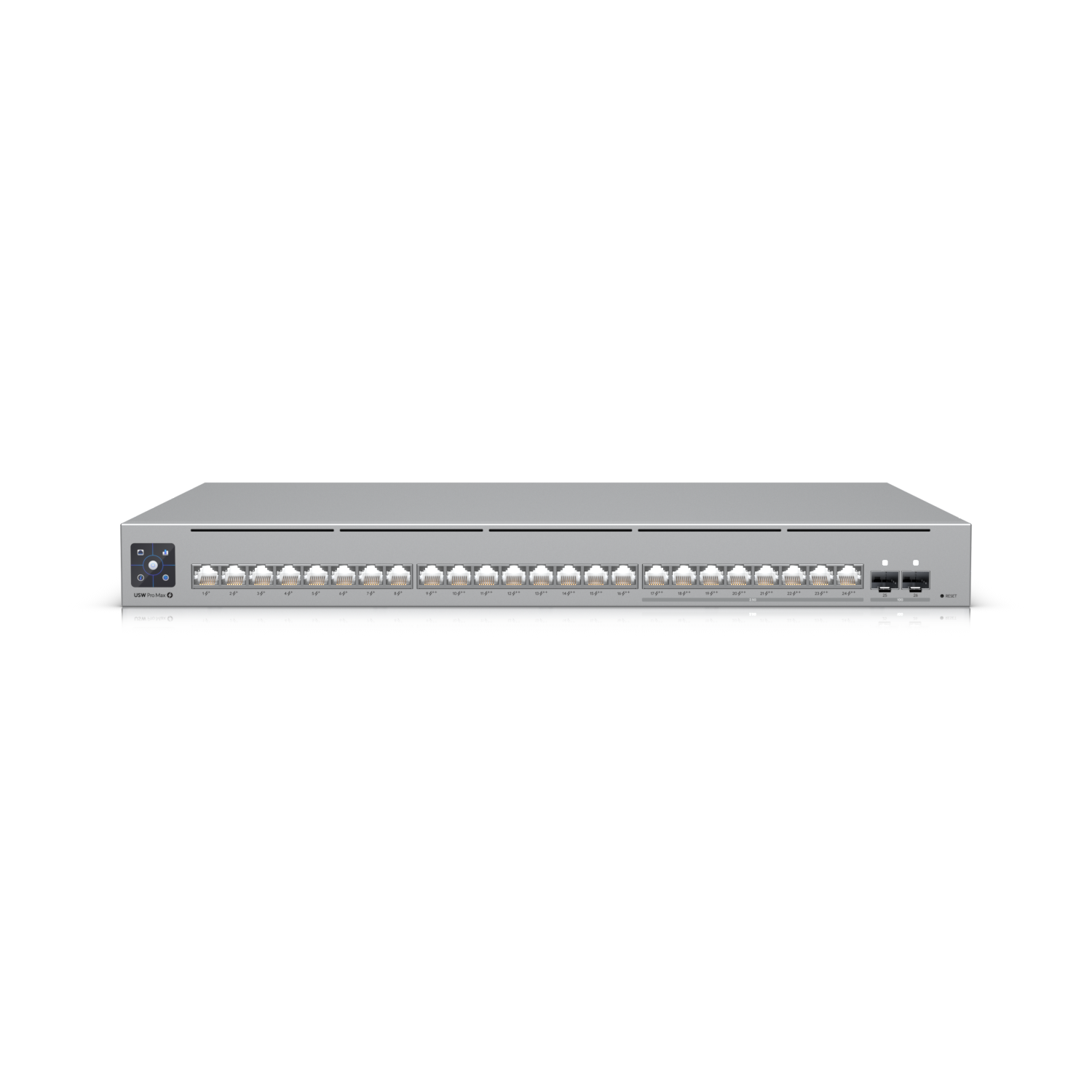

Ubiquiti UniFi Switch Pro Max 24 PoE

Ubiquiti UniFi Switch Pro Max 24 PoE - (8) 2.5 GbE PoE++ ports, (16) GbE ports including (8) PoE+ and (8) PoE++ (2) 10G SFP+ ports - (1) USP RPS DC input for power redundancy - 400W total PoE availability

Voeg toe voor slechts € 799,00

EAN: 0810084695883 Artikelnummer: UDB Categorieën: Draadloos netwerk, Netwerkapparatuur, Randapparatuur Merk: Ubiquiti

Device Bridge

UDB

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.

(1) GbE LAN port that provides up to 15W of PoE

5 GHz band with up to 867 Mbps throughput rate

Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection

_{Note. UniFi Consoles and APs must have the latest software updates installed.}

Installation Guide

Mechanical
Dimensions	130 x 55 x 34 mm (5.1 x 2.2 x 1.3″)
Weight	200 g (7.1 oz)
Enclosure material	Polycarbonate
Mount material	Polycarbonate
Hardware
Management interface	WiFi
Networking interface	(1) GbE RJ45 port
PoE interface	(1) Passive PoE output
Button	(1) Factory-reset
LED	(4) Blue: signal (1) White/blue: indicator
Power method	100—240V AC, 0.45A Max., 50/60 Hz
Max. power consumption	AC input: 25W Excluding PoE output: 10W
Max. PoE wattage per port	15W
Supported voltage range	100—240V AC
WiFi standards	802.11a/n/ac
Max. TX power 2.4 GHz 5 GHz 6 GHz	– 21 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	– 2 x 2 –
Max. data rate 2.4 GHz 5 GHz 6 GHz	– 866.7 Mbps (BW80) –
Antenna gain 2.4 GHz 5 GHz 6 GHz	– Internal antenna : 5 dBi / External omni antenna : 4 dBi –
Antenna	(1) Internal antenna (1) RP-SMA connector for external omni-antenna
Mounting	Wall (Included)
Ambient operating temperature	-10 to 40° C (14 to 104° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac	6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)

Gewicht	0,200 kg
Afmetingen	13 × 5,5 × 3,4 cm
