Elevator Starter Kit
UA-SK-Elevator
Connects to in-elevator readers with PoE to authorize floor selection. Supports up to 18 floors with digital inputs for elevator car status and emergency.
Overview
In the Box
(1) Elevator Hub (1) G2 Reader (2) 2-wire PoE extenders (10) Access Cards

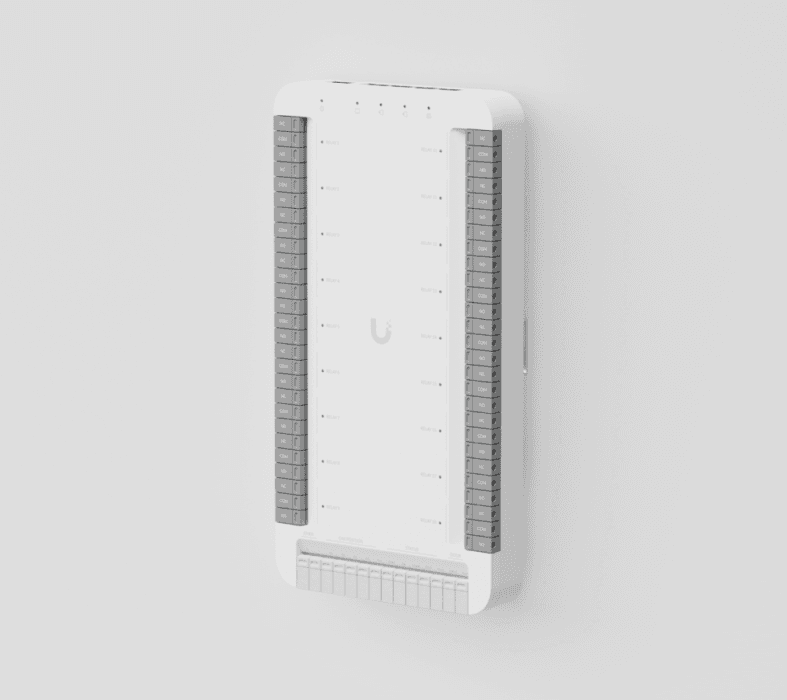

Elevator Hub
Dimensions
129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3″)
Power Method
PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight
537 g (1.2 lb)
Enclosure Material
Polycarbonate
NDAA Compliant
Yes
Mounting Material
Polycarbonate
Networking Interface
(4) 10/100/1000 Base-T
PoE Interface
(1) PoE++ input, 50V DC, 1.2A (4) PoE outputs, 50V DC, total 42W
Management
(1) 10/100/1000 Base-T
Max. Power Consumption
7W (Without PoE output)
Digital Input
(1) Emergency (1) Car position (5-bit) (1) Car status: Up/Down/Stop/Full (1) Door status: Open/Close
Outputs
(18) Relays Rating 30V DC/2A
ESD/EMP Protection
Air: ±8kV, contact: ±4kV
LEDs
B/W Learn More
Buttons
(1) Factory-reset Terminal blocks
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1
Software Information
The software version can be checked at https://unifi.ui.com

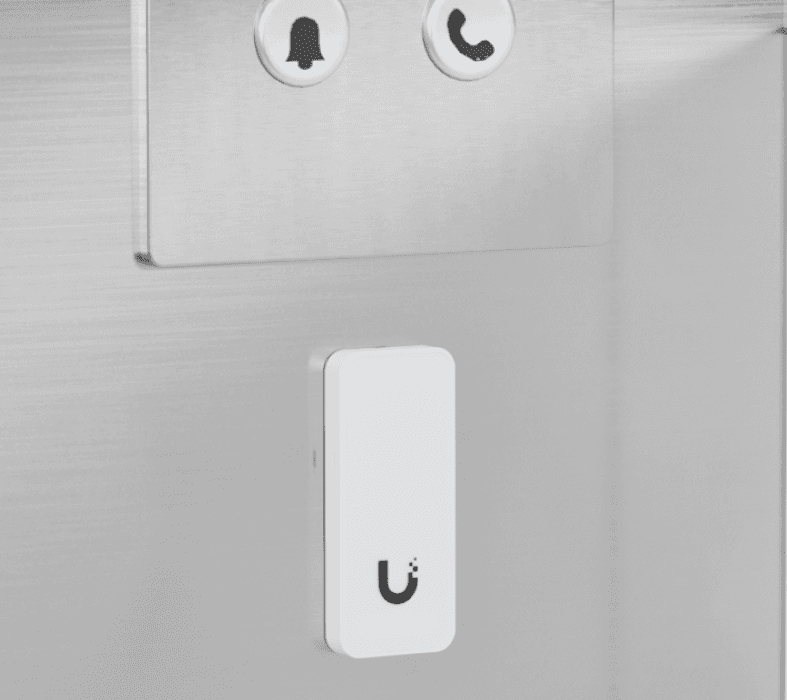

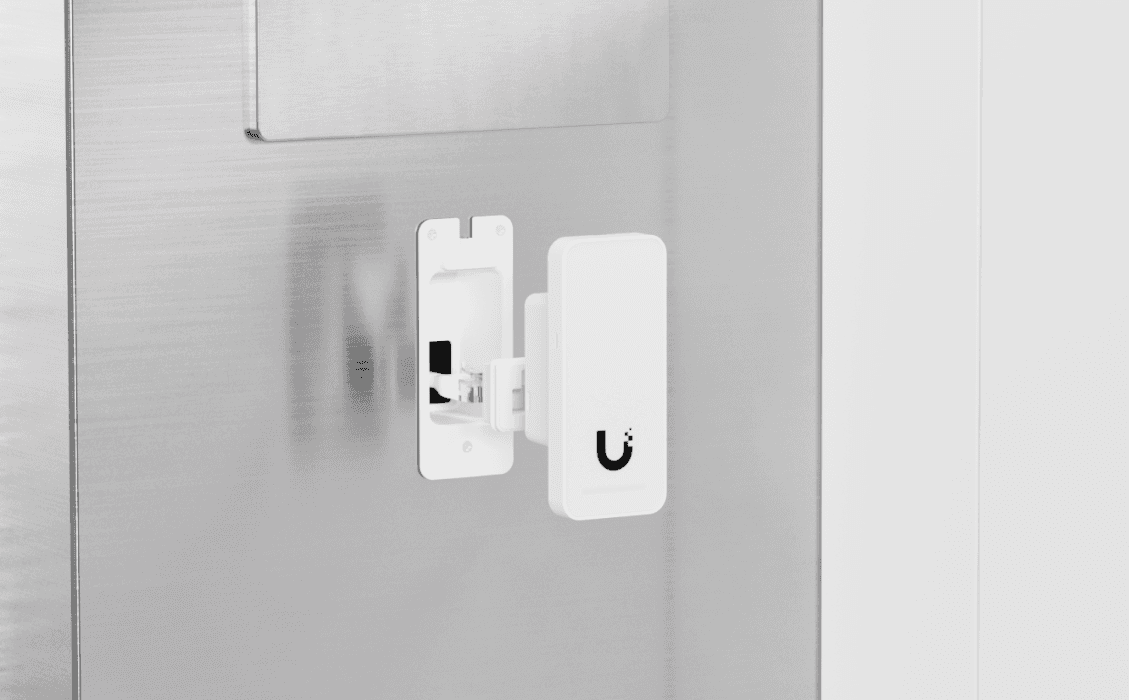

G2 Reader
Dimensions
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)
NFC Card & Keyfob Access
Yes
Mobile Unlock
Yes
Handwave Request to Exit
Yes
Weatherproofing
IP55
NDAA Compliant
Yes
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight
82 g (2.9 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
In-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
5W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Speaker
(1) Yes, 0.7W
LEDs
R/G/B/W Learn More
Button
(1) Factory-reset
NFC Read Range
< 30 mm (1.18”)
NFC Frequency
13.56 MHz
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G2/UA-G2-Black, V02
Software Information
The software version can be checked at https://unifi.ui.com
Access Card
Dimensions
85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03″)
Weight
5 g (0.18 oz)
Format
ISO 7810 ID-1
NFC Frequency
13.56 MHz
NFC Technology
ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol
NDAA Compliant
Yes

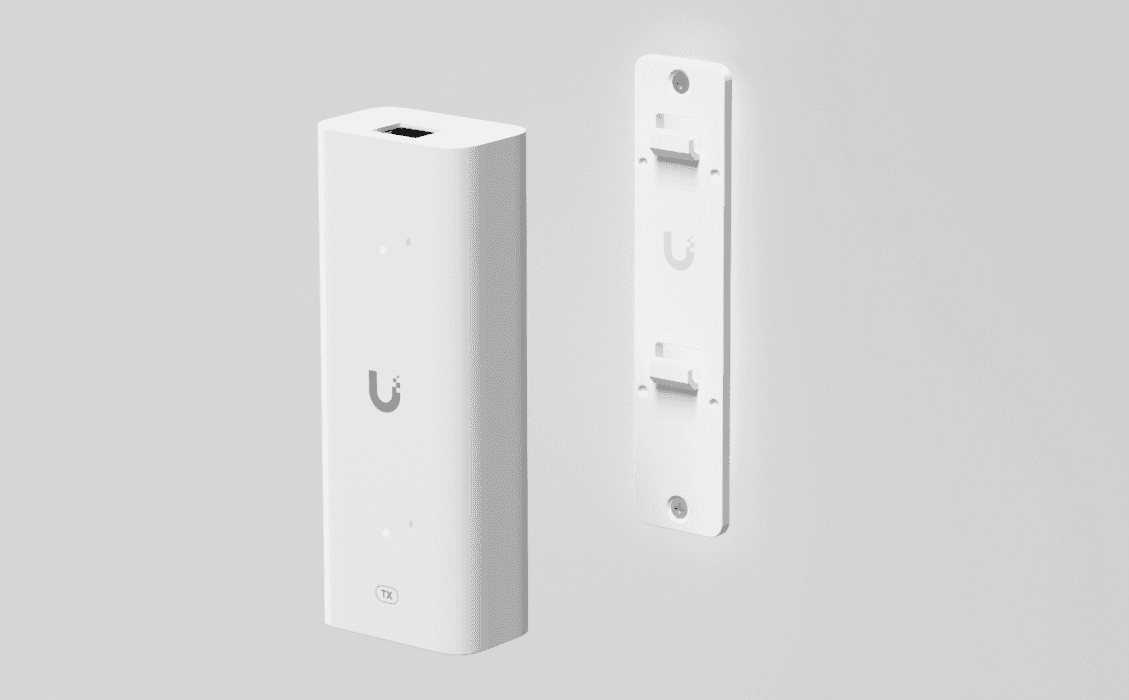

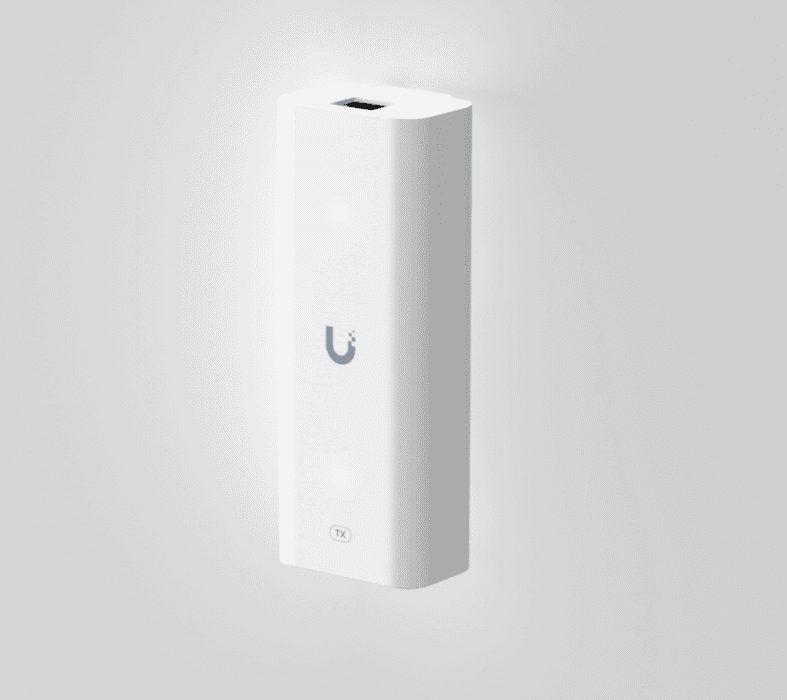

Wire PoE Extenders
Model
UACC-Extender-2Wire-PoE-Tx/Rx
Dimensions
40 x 105 x 25 mm (1.6 x 4.1 x 1″)
Weight
PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz)
Enclosure Material
Polycarbonate
Mounting Material
Polycarbonate
NDAA Compliant
Yes
Networking Interface
(1) 10/100 MbE (1) Homeplug AV
PoE Interface
PoE input: (1) PoE++, 50V DC, Max. 1.2A PoE output: (1) PoE+, 48V DC, 0.72A
Management
(1) 10/100 MbE
Power Method
PoE++
Max. Power Consumption
3W (Without PoE output)
ESD/EMP Protection
Air: ±8kV, contact: ±4kV
LEDs
White
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
