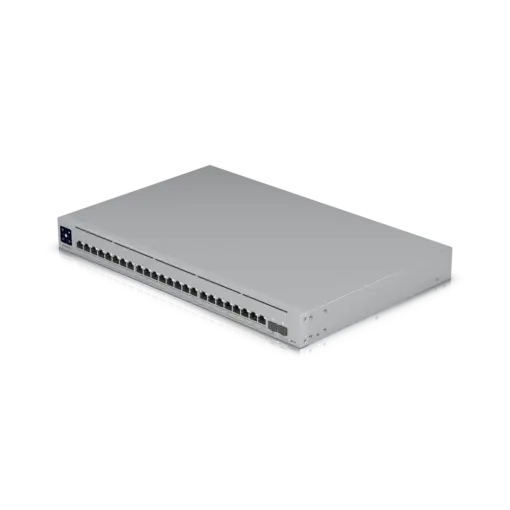

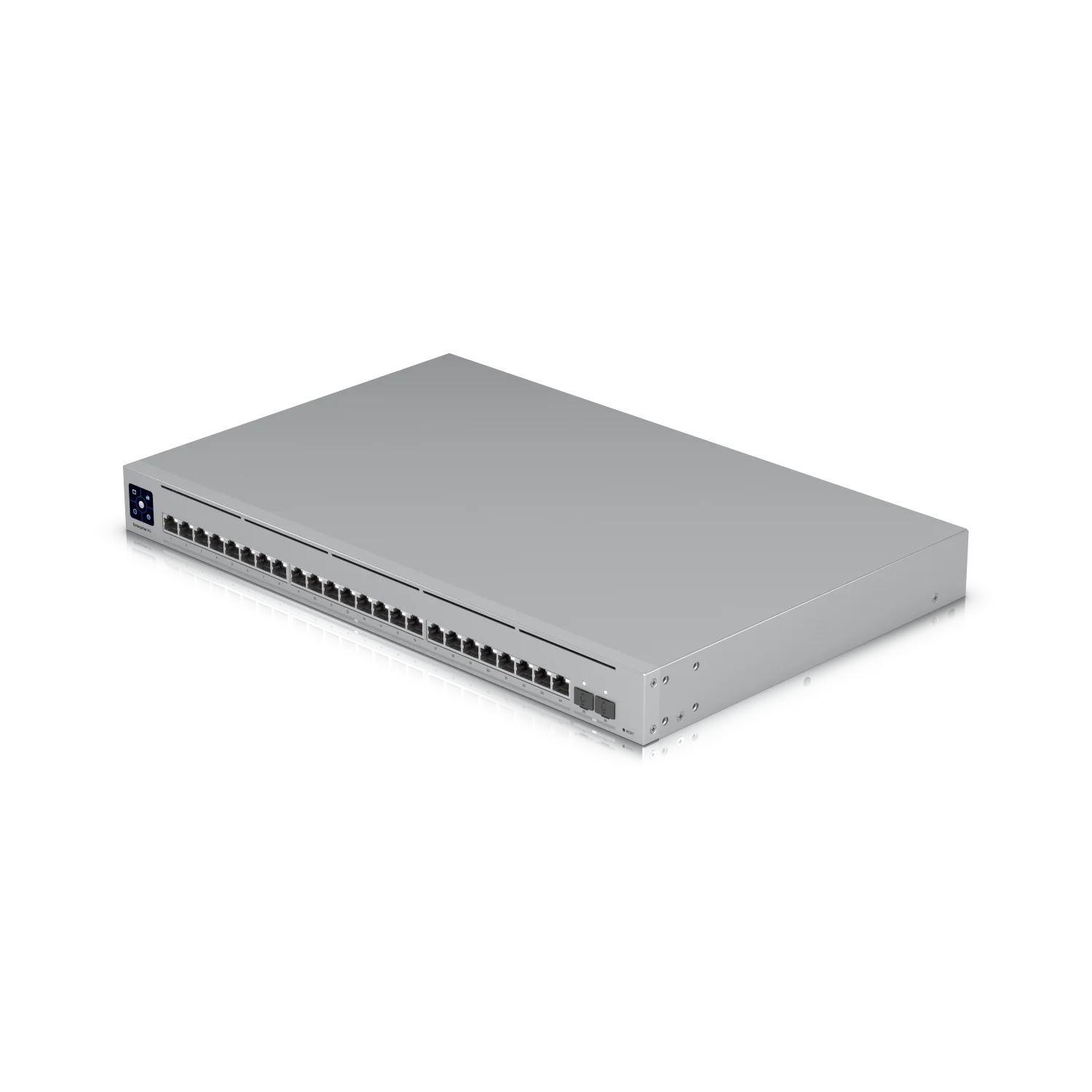

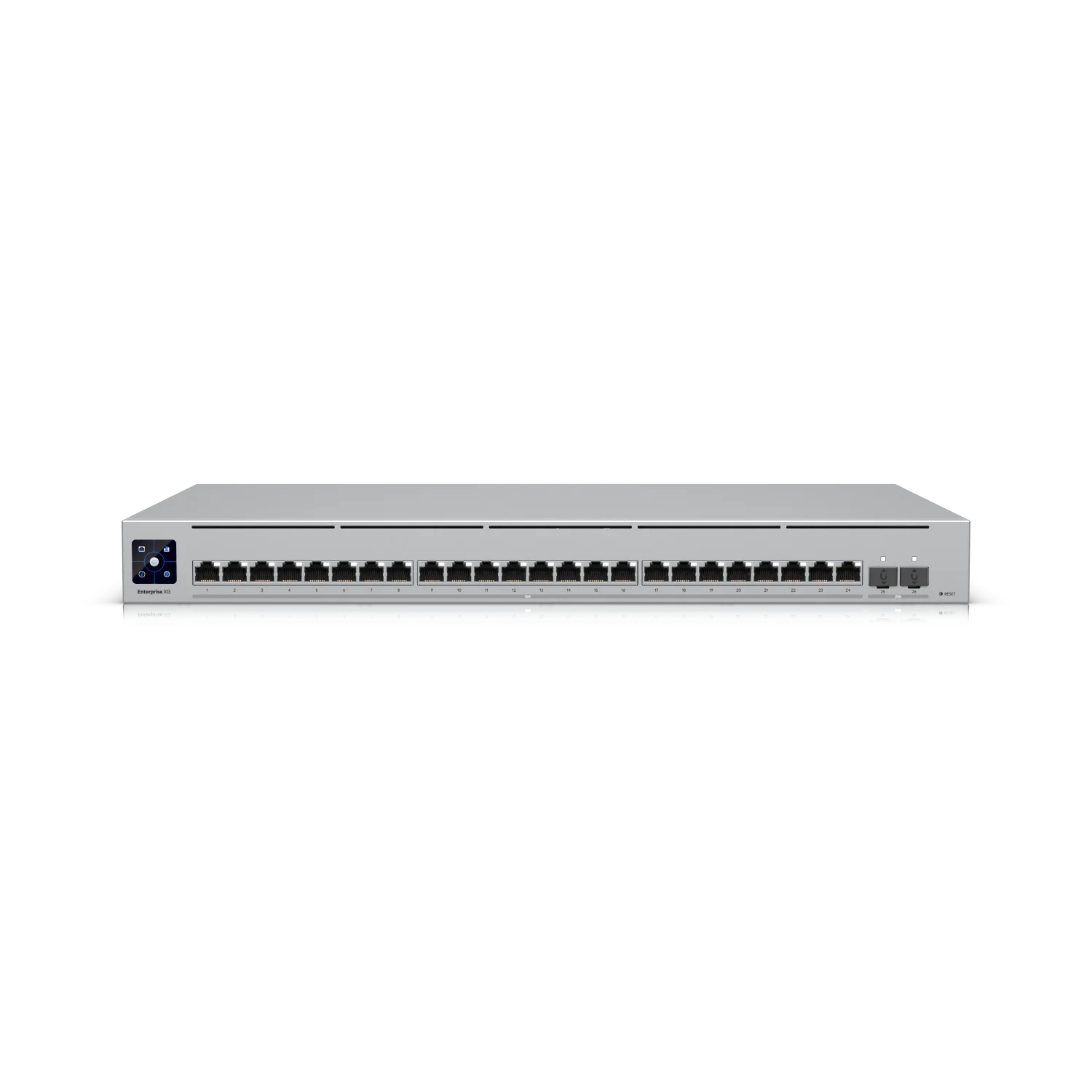

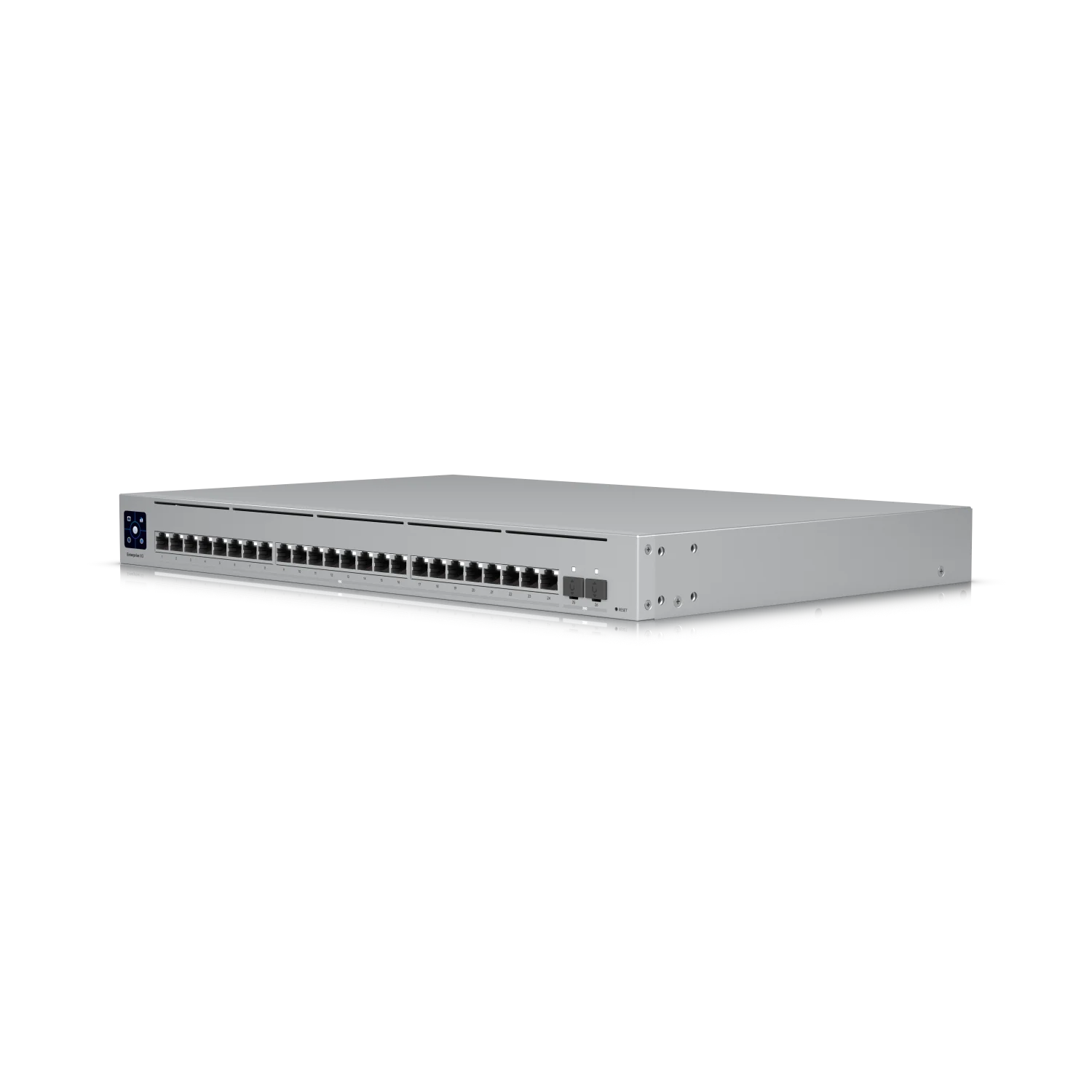

A 24-port, Layer 3 switch.

Features:

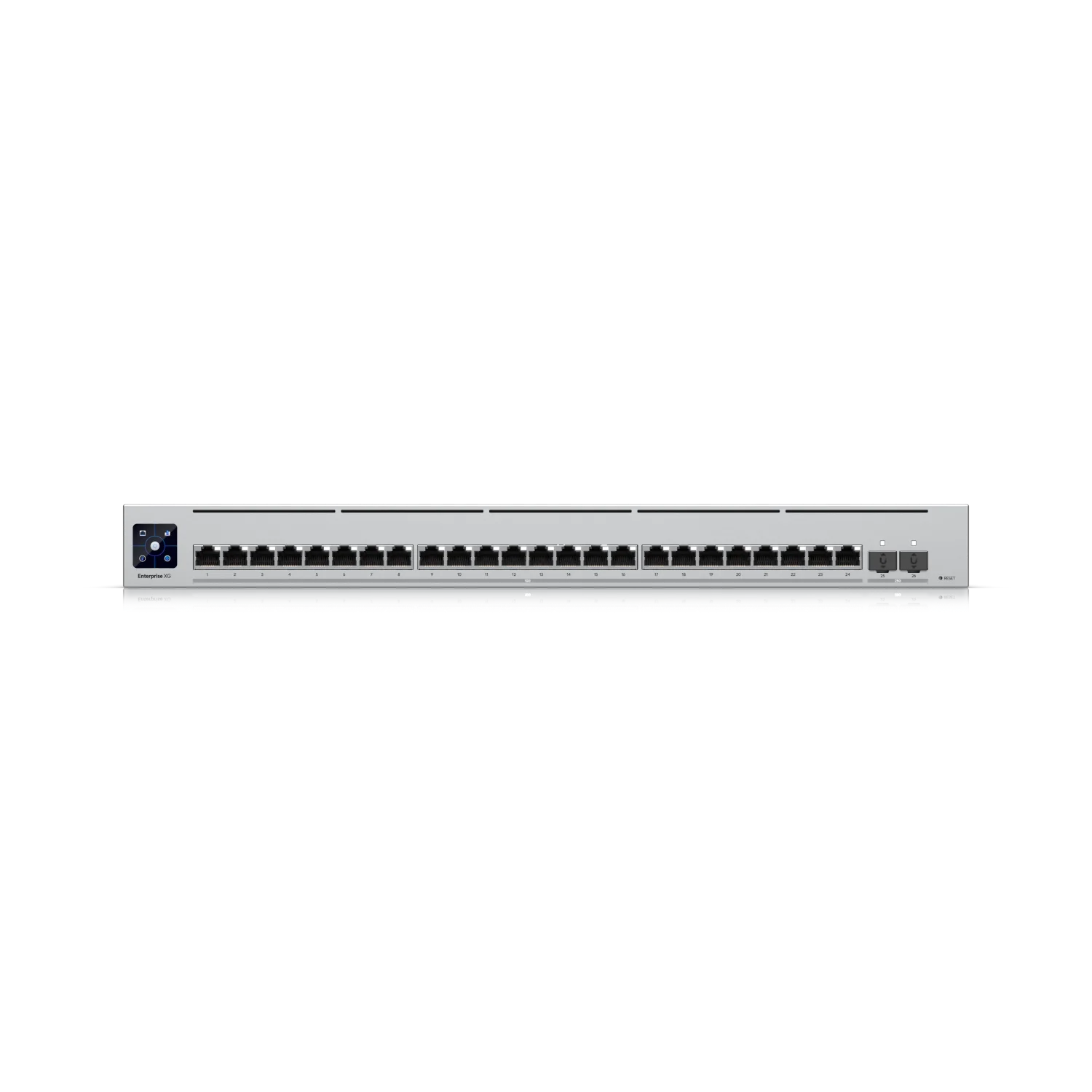

• • • (24) 10GbE RJ45 ports
    • (2) 25G SFP28 ports
    • (1) USP RPS DC input for power redundancy
    • 1.3″ LCM color touchscreen with AR switch management

Managed with the UniFi Network application: Version 6.1.67 and later

• Works with the UniFi Network Application

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

• And much more

PRODUCT SUMMARY

Mechanical
Dimensions	442 x 44 x 285 mm (17.4 x 1.7 x 11.2″)
Weight	Without mounting brackets: 4.47 kg (9.85 lb) With mounting brackets: 4.57 kg (11.02 lb)
Enclosure material	SGCC steel
Hardware
Networking interface	(24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
Management interface	Ethernet In-Band
SFP28 interface	(2) 25G SFP28 ports* *The two SFP28 ports don’t support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Total non-blocking throughput	290 Gbps
Switching capacity	580 Gbps
Forwarding rate	431.52 Mpps
Max. power consumption	100W
Power method	(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply	AC/DC, internal, 100W
Services	SMB Layer 3 GbE switch
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3″ LCM color touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading
Button	Factory reset
Operating temperature	-5 to 40° C (23 to 104° F)
Operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
Ethernet	Link/activity
