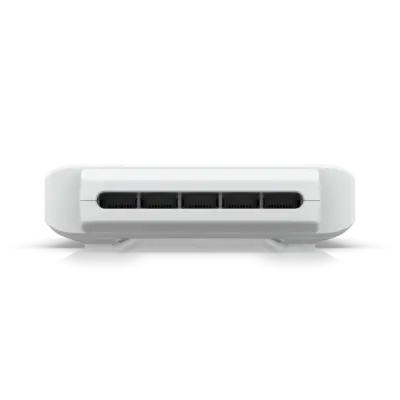

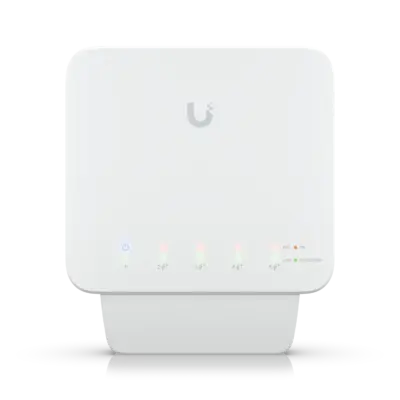

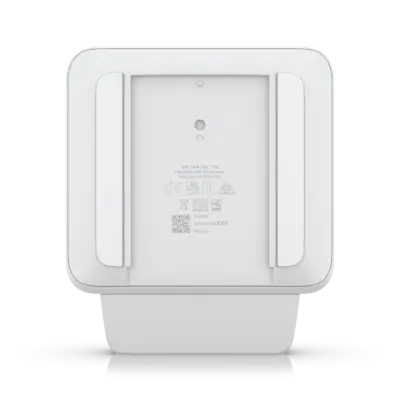

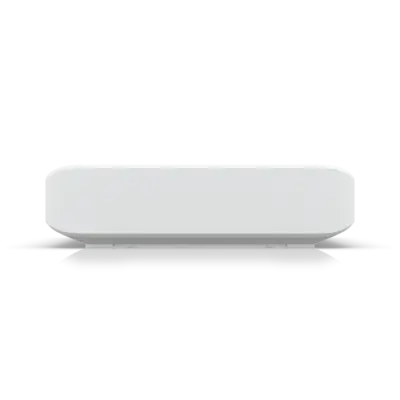

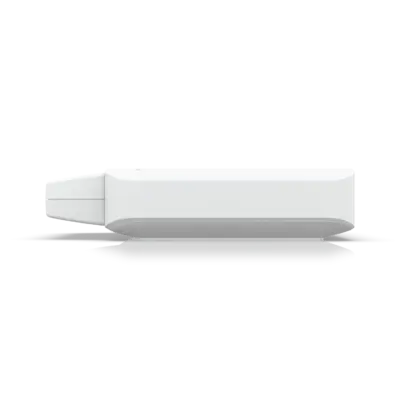

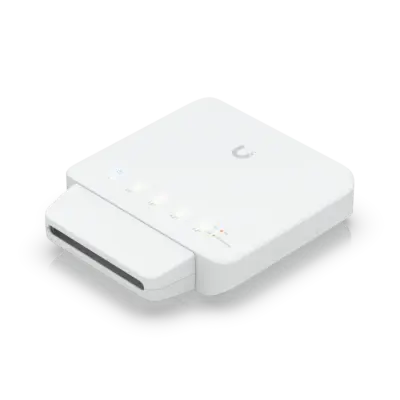

Ubiquiti UniFi Switch Flex
€ 101,95

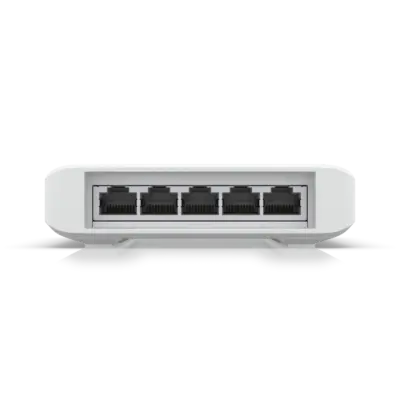

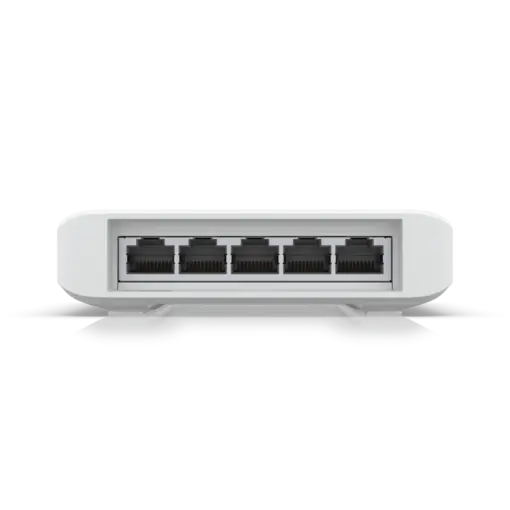

Ubiquiti UniFi Switch Flex – (5) 10/100/1,000 MbE RJ45 ports – PoE+
7 op voorraad
Switch Flex
SKU: USW-Flex
Datasheet
Installation GuideFlexible five-port, Layer 2 PoE switch that can be powered with PoE++.
Features:
-
-
- (1) GbE, PoE++ RJ45 input
- (4) GbE, PoE+ RJ45 ports
- Up to a 46W total PoE supply*
- Weatherproof design with multiple mounting options
-
Managed with the UniFi Network application: Version 5.10.3 and later
*When powered with a PoE++ switch or a 60W PoE adapter (sold separately).
- Works with the UniFi Network Application
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
PRODUCT SUMMARY
| Mechanical | |
|---|---|
| Dimensions | 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10″) |
| Weight | 230 g (8.11 oz) |
| Hardware | |
| Networking interface | (5) 10/100/1,000 MbE RJ45 ports |
| Management interface | Ethernet In-Band |
| PoE Out (Ports 2-5) | PoE+ (Pins 1, 2+; 3, 6-) |
| Ma. power consumption | 5W (Excluding PoE output) |
| Max. PoE wattage per port | 25W |
| Total PoE power budget Powered by PoE Powered by PoE+ Powered by PoE++ Powered by PoE adapter (Enabled in Network Application) |
8W 20W 46W 46W |
| Voltage range PoE PoE+/PoE++ |
44—57V 50—57V |
| ESD/EMP protection | ± 16kV Air, ± 16kV contact |
| Operating temperature 46W PoE output 25W PoE output |
-40 to 55° C (-40 to 131° F) -40 to 65° C (-40 to 149° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted |
| Ethernet | PoE Speed/link/activity |
| Power Method (Port 1) | |
| PoE type PoE/PoE+ (Pins 1, 2+; 3, 6-) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 😎 50V/60W PoE adapter* |
Recommended PoE source USW-24-PoE (sold separately) USW-Pro-24-PoE (sold separately) PoE Injector, PoE-50-60W-WH or PoE-50-60W (sold separately) * To enable PoE output power, select Power Source PoE Injector in UniFi Application. |
INSTRUCTIONS AND MANUALS
| Gewicht | 0,230 kg |
|---|---|
| EAN | 0817882027595 |
