Pro XG 24 PoE
USW-Pro-XG-24-PoE (720W)
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7″)

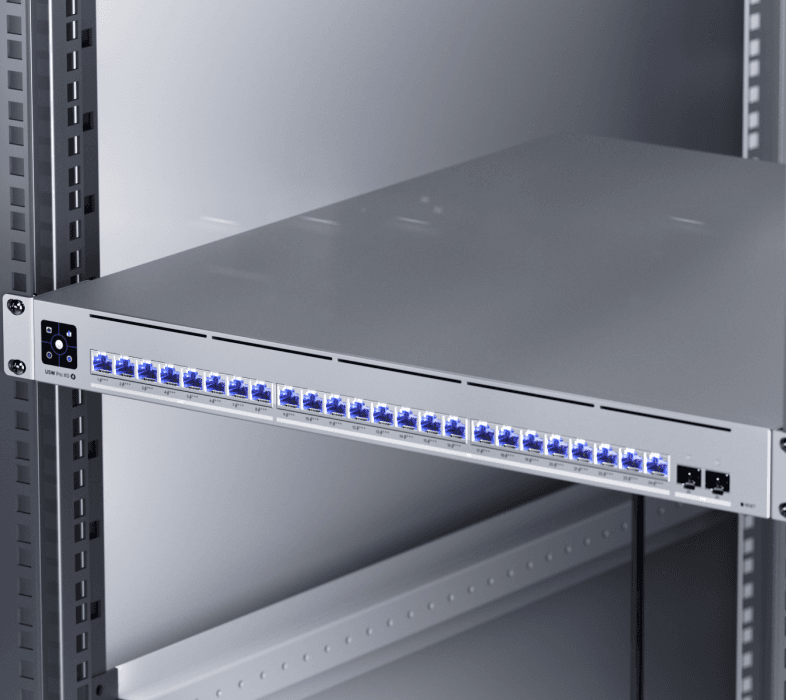

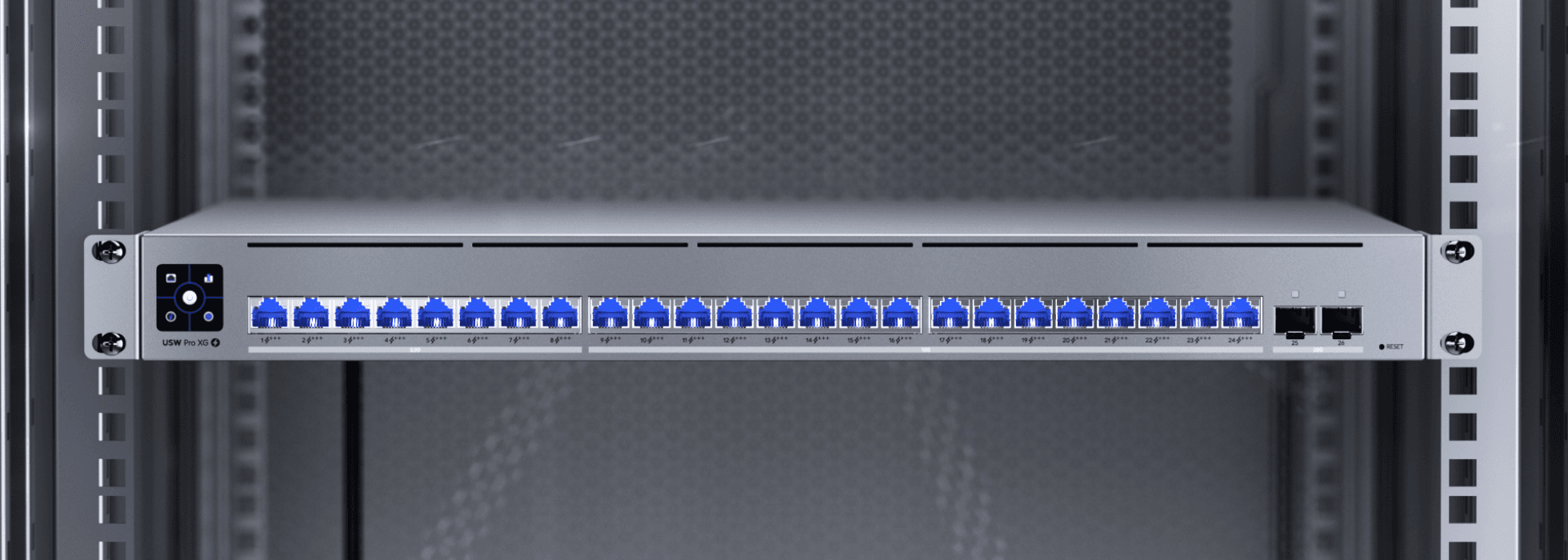

Port Layout
2.5 GbE RJ45
8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45
16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28
2 (25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
720W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor

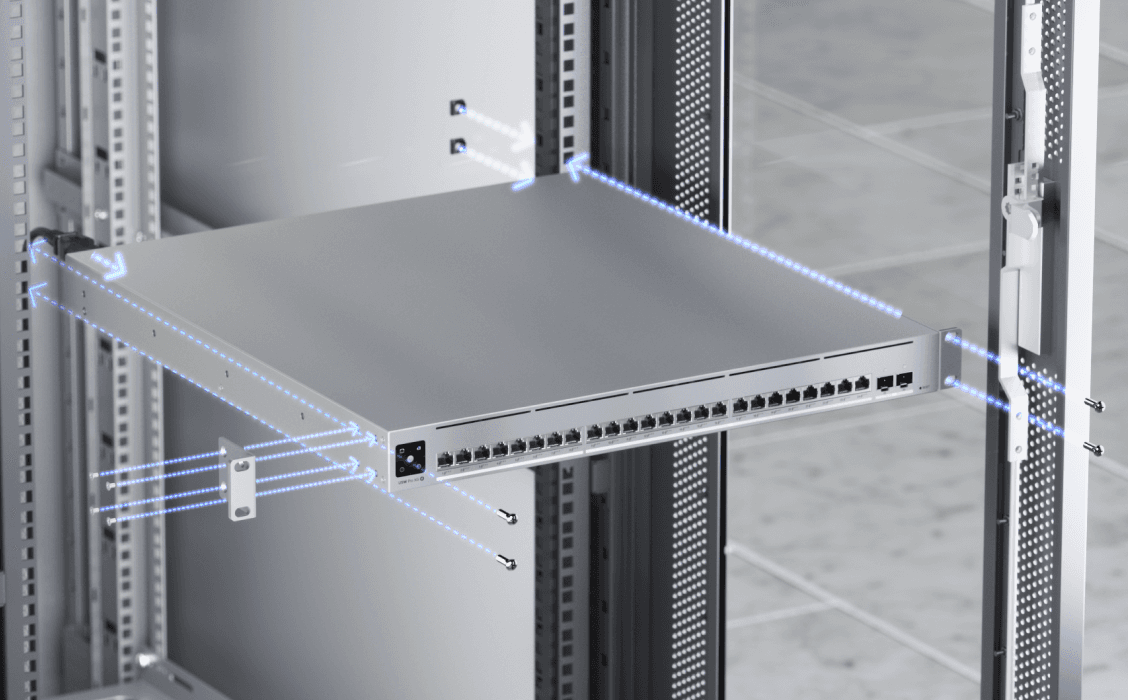

Rack mount (1U)
Etherlighting™
✓
Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
PoE Ports
PoE+++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
150W (Excluding PoE Output) 870W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 870W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 7.9 kg (17.4 lb) With mounting brackets: 8 kg (17.6 lb)
Enclosure Material
SGCC steel

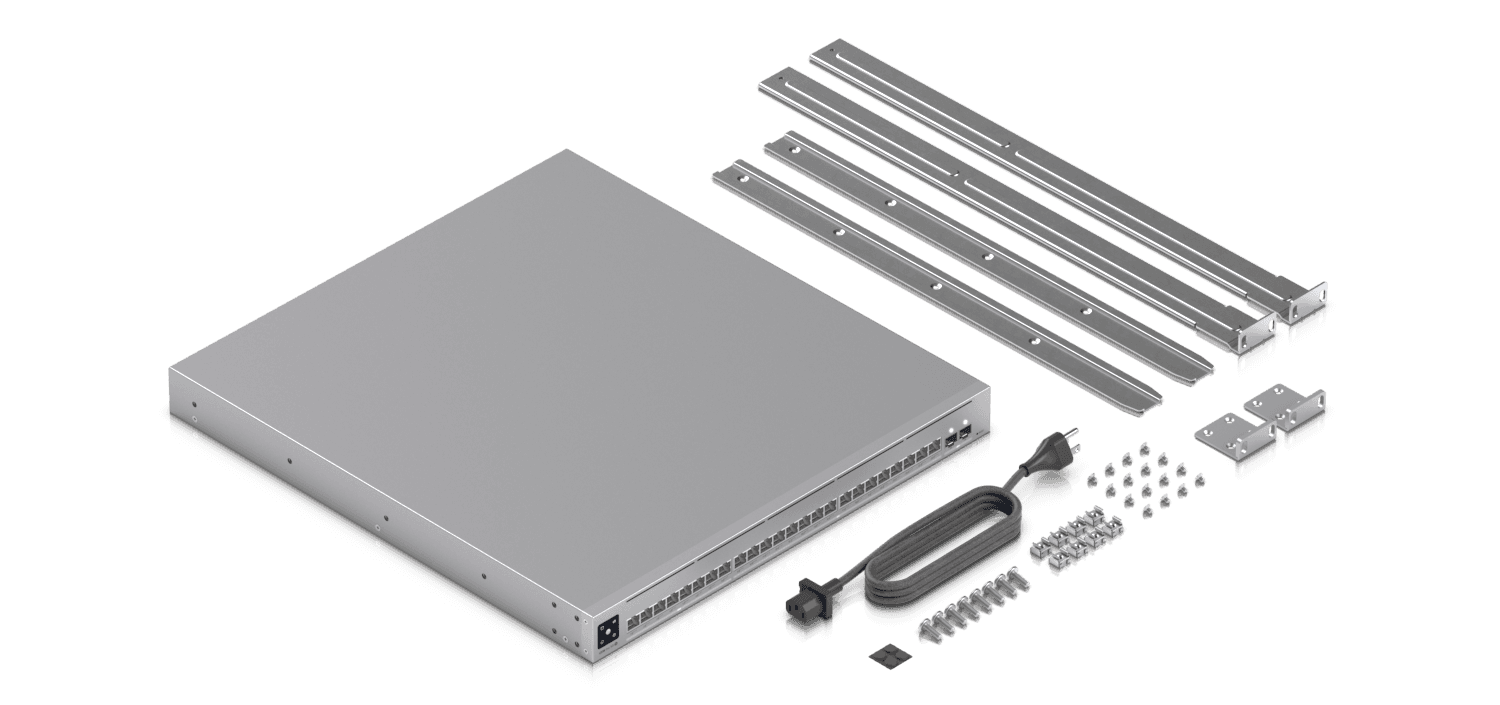

Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display
1.3″ touchscreen
ESD/EMP Protection
Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP28
✓
LEDs
RPS
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC
Application Requirements
UniFi Network
Version 9.1.120 and later
