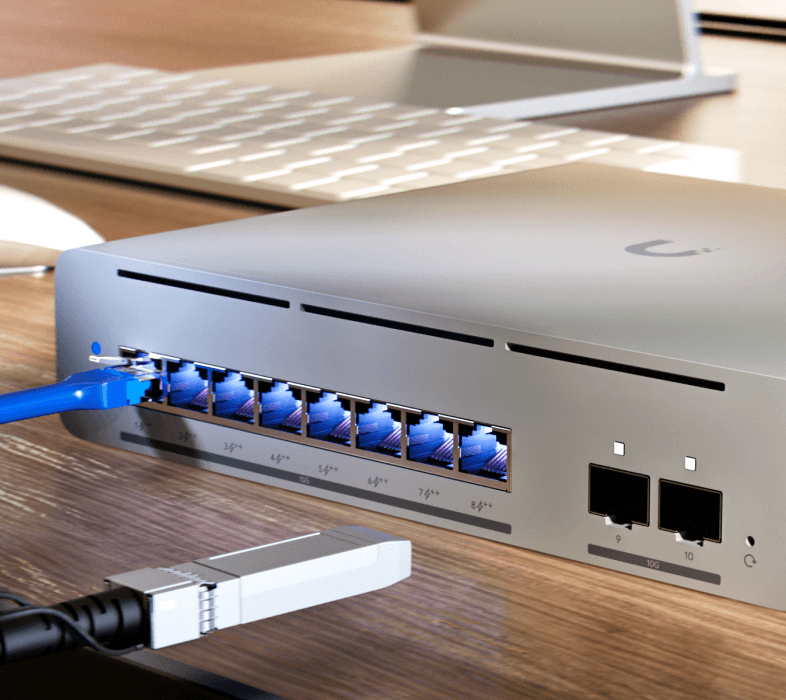

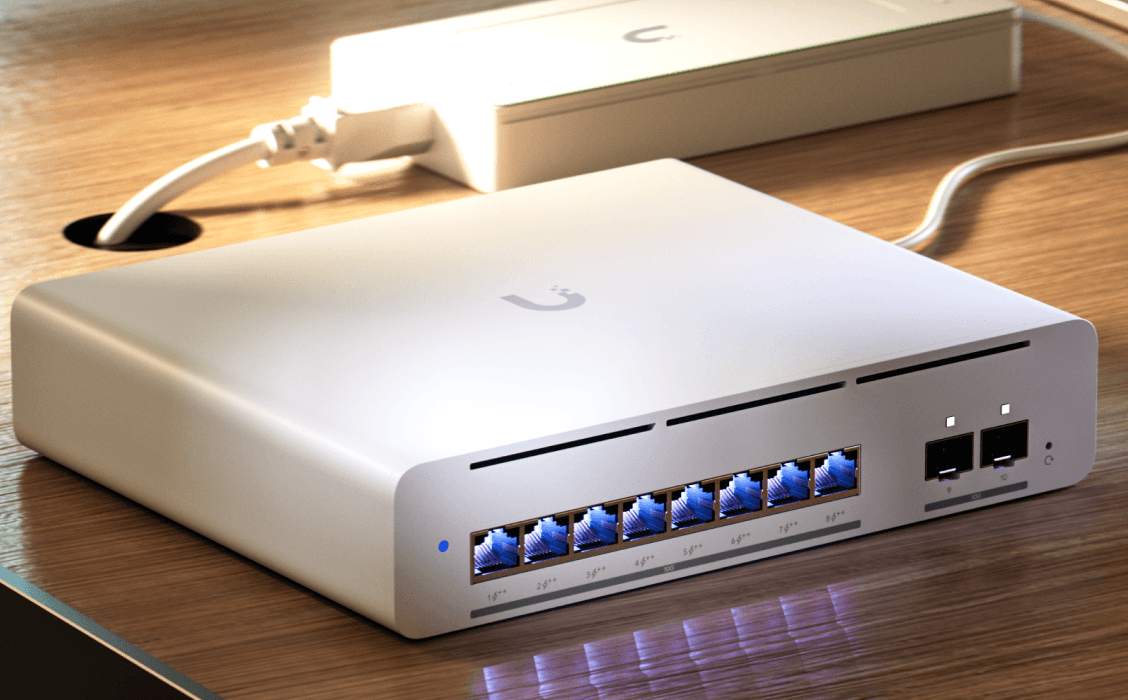

Ubiquiti UniFi Switch Pro XG 8 PoE
€ 599,95
Ubiquiti UniFi Switch Pro XG 8 PoE – (8) 10 GbE PoE++ ports and (2) 10G SFP+ ports – 155W total PoE availability
Beschikbaar via nabestelling
Pro XG 8 PoE
USW-Pro-XG-8-PoE (155W)
Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
Dimensions
210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″)
Port Layout
10 GbE RJ45
8 (All PoE++) (10G/5G/2.5G/1G/100M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
155W
Layer 3
✓
Form Factor
Compact desktop, wall
Etherlighting™
✓
Switching Capacity
200 Gbps
Total Non-Blocking Throughput
100 Gbps
Forwarding Rate
149 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
PoE Ports
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
Max. Power Consumption
61W (Excluding PoE output) 220W (Including PoE output)
Power Method
AC/DC Adapter (included)
Power Input Method
DC input
Power Supply
AC/DC, external, 210W
Supported Voltage Range
50—57V DC
Management
Ethernet AR
Weight
1.6 kg (3.5 lb)
Enclosure Material
SGCC steel
Mount Material
Polycarbonate
ESD/EMP Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
LEDs
System
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC
Application Requirements
UniFi Network
Version 9.0.114 and later
| Gewicht | 1,6 kg |
|---|---|
| Afmetingen | 21,04 × 17,38 × 4,37 cm |
