Ubiquiti UniFi Access Door Hub Mini

Dimensions

113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1″)

Supported Doors

1

Input Terminals

(1) Door exit request (1) Door position

Power Method

PoE++

UniFi Application Suite

Access

Weight

190 g (6.7 oz)

Enclosure Material

Polycarbonate, metal

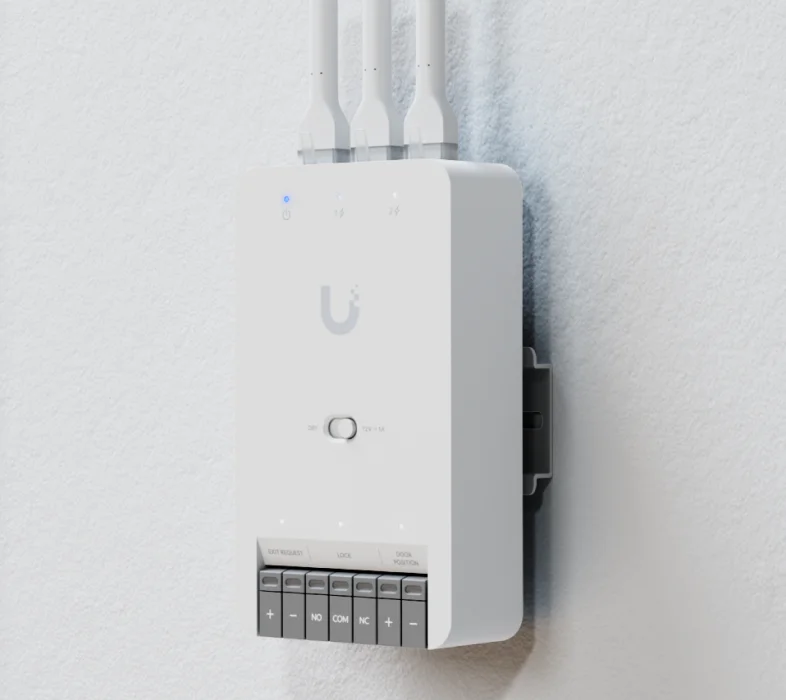

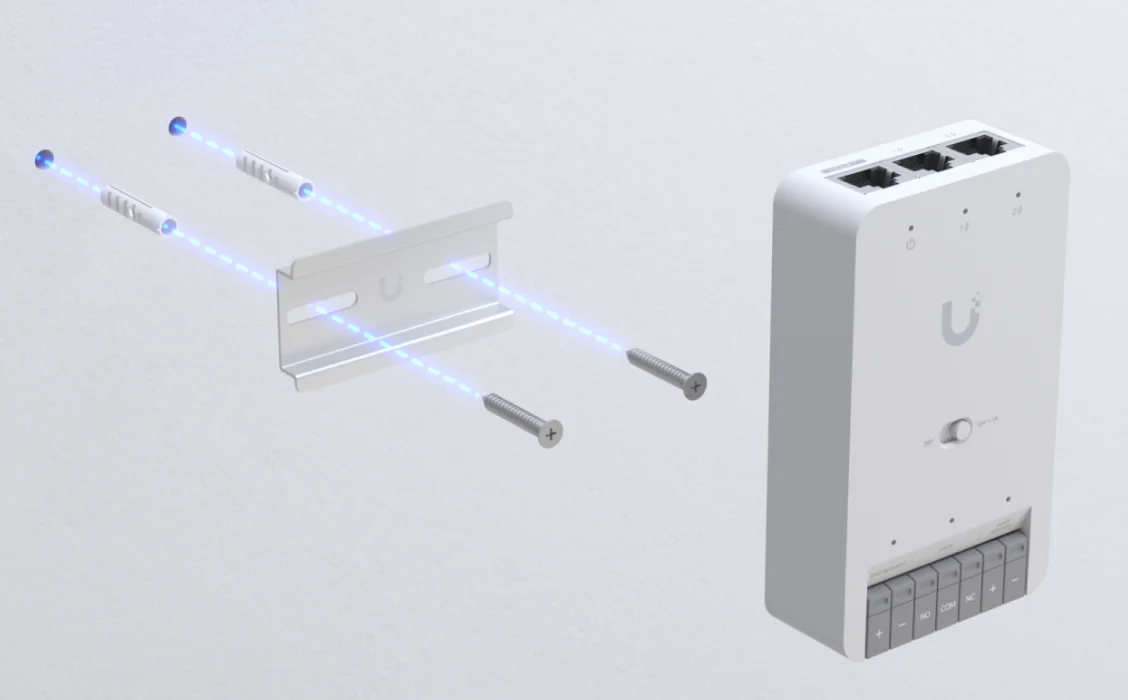

Mounting

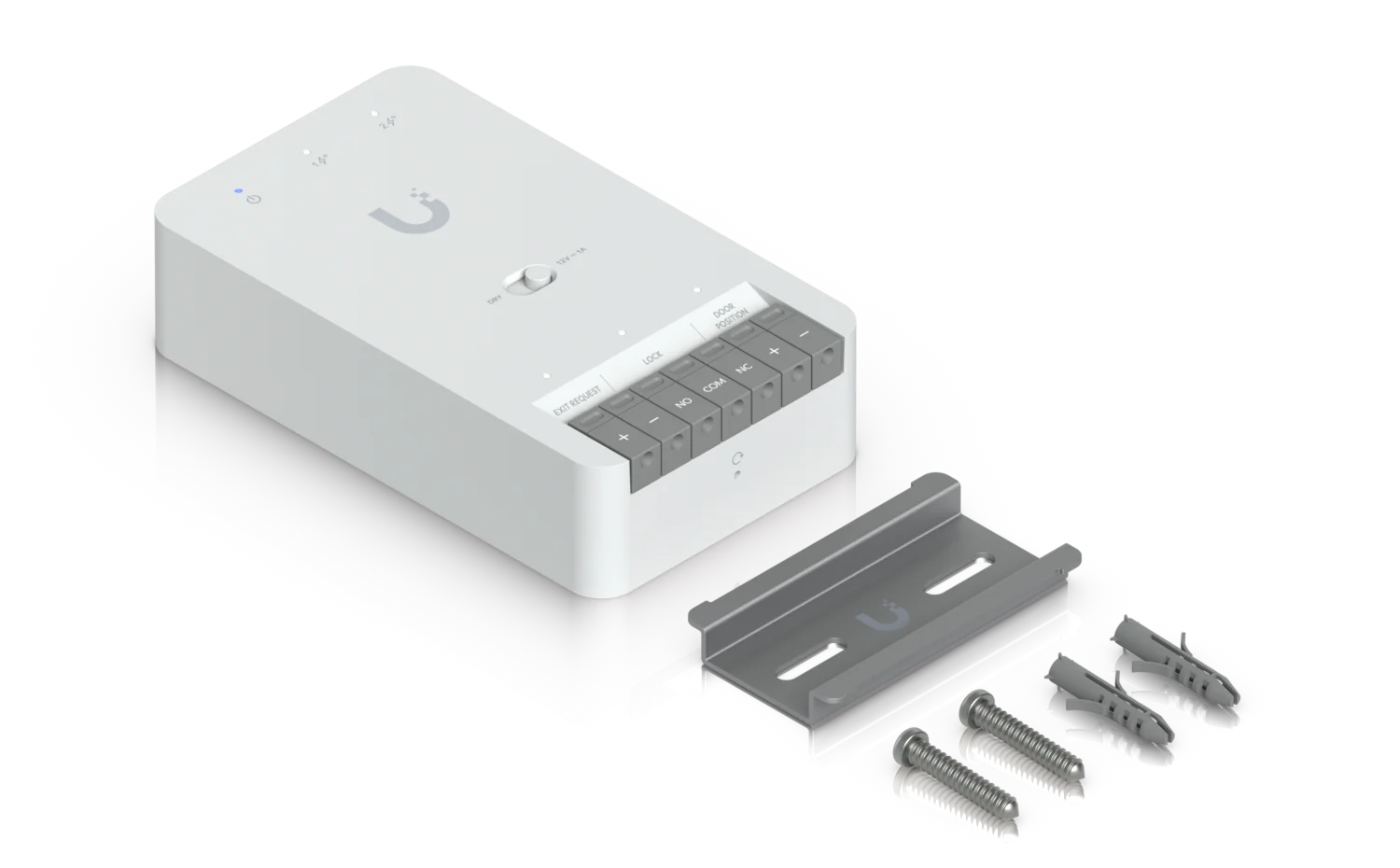

DIN-rail (Included)

Indoor and Outdoor Use

Indoor only

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(3) GbE RJ45 ports

PoE Interface

(1) PoE++ input, 50V DC, 1A (2) PoE outputs, total 31W

Max. Power Consumption

19W (Without PoE output) 50W (With PoE output)

Dry Output Relay

30V DC, 1A

Wet Output Relay

12V DC, 1A

LEDs

W/B Learn More

Buttons

(1) Factory-reset (1) Dry/Wet switch

Recommend Max. Cable Length

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (262 ft)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

Certifications

CE, FCC, IC

Document number, and issue date and/or revision level

UA-Hub-Door-Mini, V01

Management Application

Access

Software Information

The software version can be checked at https://unifi.ui.com
