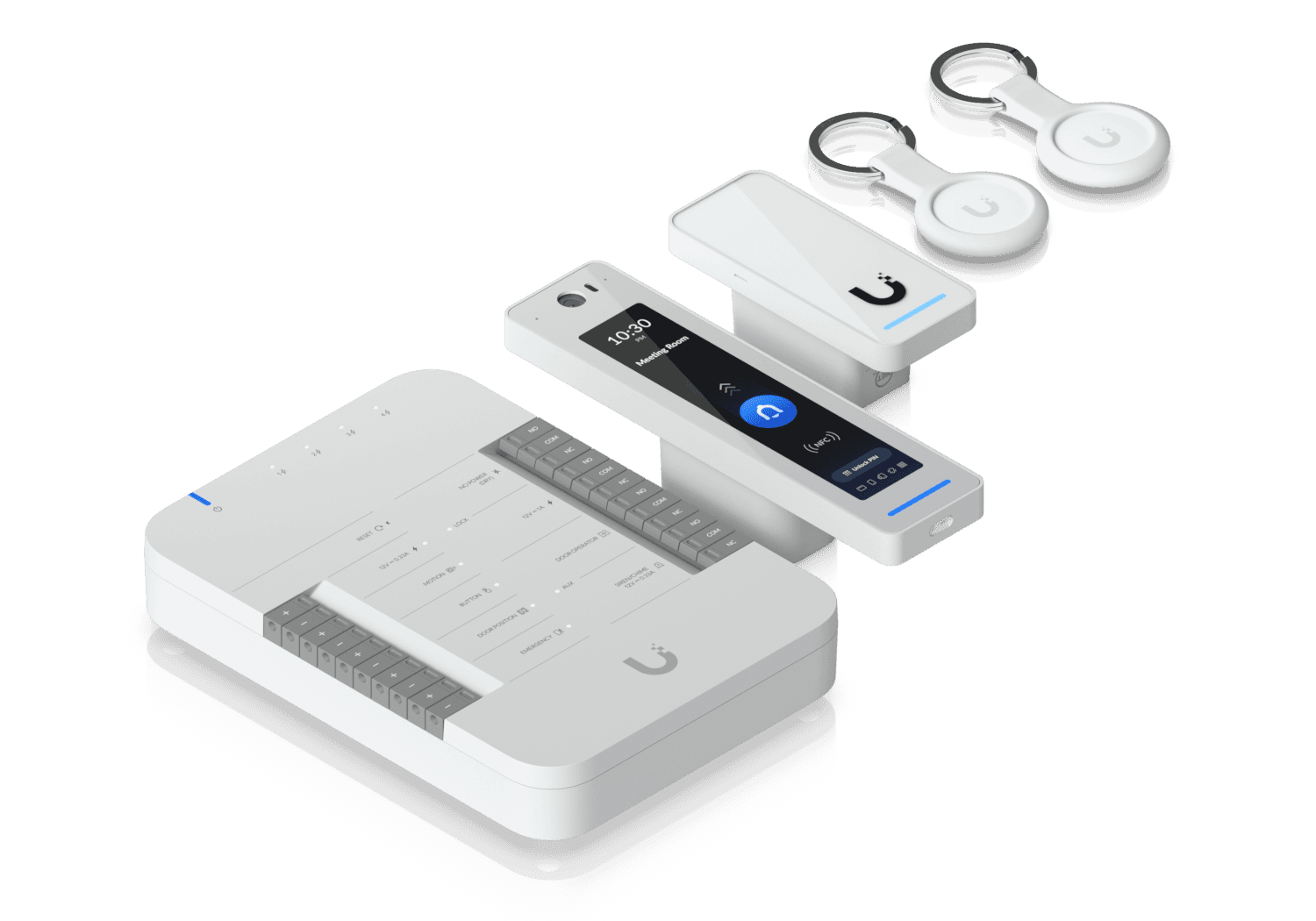

Ubiquiti UniFi Access G3 Starter Kit Pro

In the Box

(1) Door Hub (1) G3 Reader Pro (1) G3 Reader (2) Pocket Keyfobs 10 free 1-year Touch Passes included Learn More

Dimensions

174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″)

Supported Doors

1

Input Terminals

(2) Door exit request (1) Door position (1) Emergency

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weight

363 g (12.8 oz)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Mounting

DIN-rail (Included)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Networking Interface

(5) 10/100/1000 Base-T

PoE Interface

(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)

Max. Power Consumption

30W (Without PoE output) 50W (With PoE output)

Digital Input

Request to exit, request to enter, remote release, door position sensor

Dry Output Relay

Lock: 30V DC, 1A Aux: 30V DC, 1A

Powered Output Relay

Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A

LEDs

White/blue Learn More

Button

(1) Factory-reset

Recommend Max. Cable Length

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: 1

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub-Door002, V01

Software Information

The software version can be checked at https://unifi.ui.com

Dimensions

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)

Integrated Camera

Yes

NFC Card & Keyfob Access

Yes

PIN Access

Yes

Apple/Google Wallet

Yes

Mobile Unlock

Yes

Two-Way Intercom & Doorbell Access

Yes

Weatherproofing

IP55

NDAA Compliant

Yes

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weight

136 g (4.8 oz)

Enclosure Material

Polycarbonate, glass

Mount Material

Aluminum alloy

Mounting

Wall, gang-box mount (Included) Angle mount, junction box (Optional)

Indoor and Outdoor Use

Yes

Ambient Operating Temperature

Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(1) GbE RJ45 port

Connectivity

BLE 4.2 NFC

Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption

6W

Supported Voltage Range

48V DC

ESD/EMP Protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Display

120 mm (4.7″) diagonal

Touch Screen Technology

Capacitive touch

Display Luminance

480 nits (Typical)

Screen Orientation

Portrait

Resolution

1280 x 286 px

Microphone

Yes

Speaker

(1) Yes, 1.5W

LEDs

R/G/B/W/Amber Learn More

Button

(1) Factory-reset

NFC Frequency

13.56 MHz

NFC Read Range

< 30 mm (1.18”)

NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC,UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G3-Pro-W/UA-G3-Pro-B, V01

Software Information

The software version can be checked at https://unifi.ui.com

Dimensions

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)

NFC Card & Keyfob Access

Yes

Apple/Google Wallet

Yes

Mobile Unlock

Yes

Handwave Request to Exit

Yes

Weatherproofing

IP55

NDAA Compliant

Yes

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weight

82 g (2.9 oz)

Enclosure Material

Polycarbonate, glass

Mount Material

Aluminum alloy

Mounting

In-wall, gang box (Included) Junction box (Optional)

Indoor and Outdoor Use

Yes

Ambient Operating Temperature

-30 to 45° C (-22 to 113° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(1) 10/100 MbE RJ45 port

Connectivity

BLE 4.1 NFC

Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption

5W

Supported Voltage Range

48V DC

ESD/EMP Protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Speaker

(1) Yes, 0.7W

LEDs

R/G/B/W Learn More

Button

(1) Factory-reset

NFC Frequency

13.56 MHz

NFC Read Range

< 30 mm (1.18”)

NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G3, V01

Software Information

The software version can be checked at https://unifi.ui.com

Dimensions

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29″)

Weight

16 g (0.56 oz)

Enclosure Material

Polycarbonate, stainless steel, silicone rubber

Weatherproofing

IP54

NDAA Compliant

Yes

Ambient Operating Humidity

10 to 90% noncondensing

Ambient Operating Temperature

-10 to 45° C (14 to 113° F)

NFC Frequency

13.56 MHz

NFC Technology

ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol

Certification

CE
