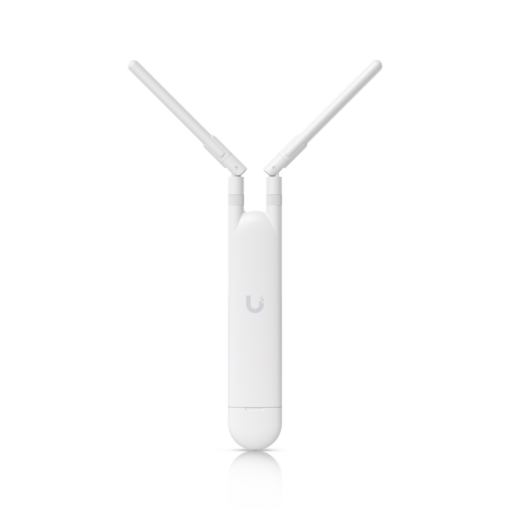

Ubiquiti UniFi Access Point AC Mesh – Wi-Fi 5
Prijsklasse: € 118,50 tot € 522,95
Ubiquiti UniFi Access Point AC Mesh – Indoor/Outdoor – WiFi 5 (2×2 MIMO) – PoE – (1) GbE port
AC Mesh
UAP-AC-M
Compact, indoor/outdoor WiFi access point with optional external antenna support for directional coverage.
140 m² (1,500 ft²) coverage
250+ connected devices
WiFi 5 (2×2 MIMO)
Powered using PoE*
Versatile wall or pole mounting
(2) RP-SMA connectors for optional external antennas**
*PoE power adapter included with single unit purchases.
**UMA-D external antenna accessory offers directional coverage.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″) |
| Weight | 152 g (5.4 oz) |
| Hardware | |
| Networking interface | (1) GbE port |
| Management interface | Ethernet Bluetooth |
| Power method | 24V passive PoE (Pairs 4, 5+; 7, 8 return) PoE alternative A (Pairs 1, 2+; 3, 6 return) |
| Power supply | Gigabit PoE adapter 24V, 0.5A* *5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8.5W |
| Max. TX power 2.4 GHz 5 GHz |
20 dBm 20 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz |
300 Mbps 867 Mbps |
| Antenna gain 2.4 GHz 5 GHz |
3 dBi 4 dBi |
| Button | Factory reset |
| Mounting | Wall/pole/fast-mount (Included) |
| Operating temperature | -30 to 70° C (-22 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UKCA |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| VLAN | 802.1Q |
| BSSID | Up to 4 per radio |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| Gewicht | 0,152 kg |
|---|---|
| Afmetingen | 35,3 × 4,6 × 3,44 cm |
