UX
Built-in WiF6 (2×2 MIMO)
140 m² (1,500 ft²) single-unit coverage
60+ connected WiFi devices
(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port to extend network
0.96″ LCM status display

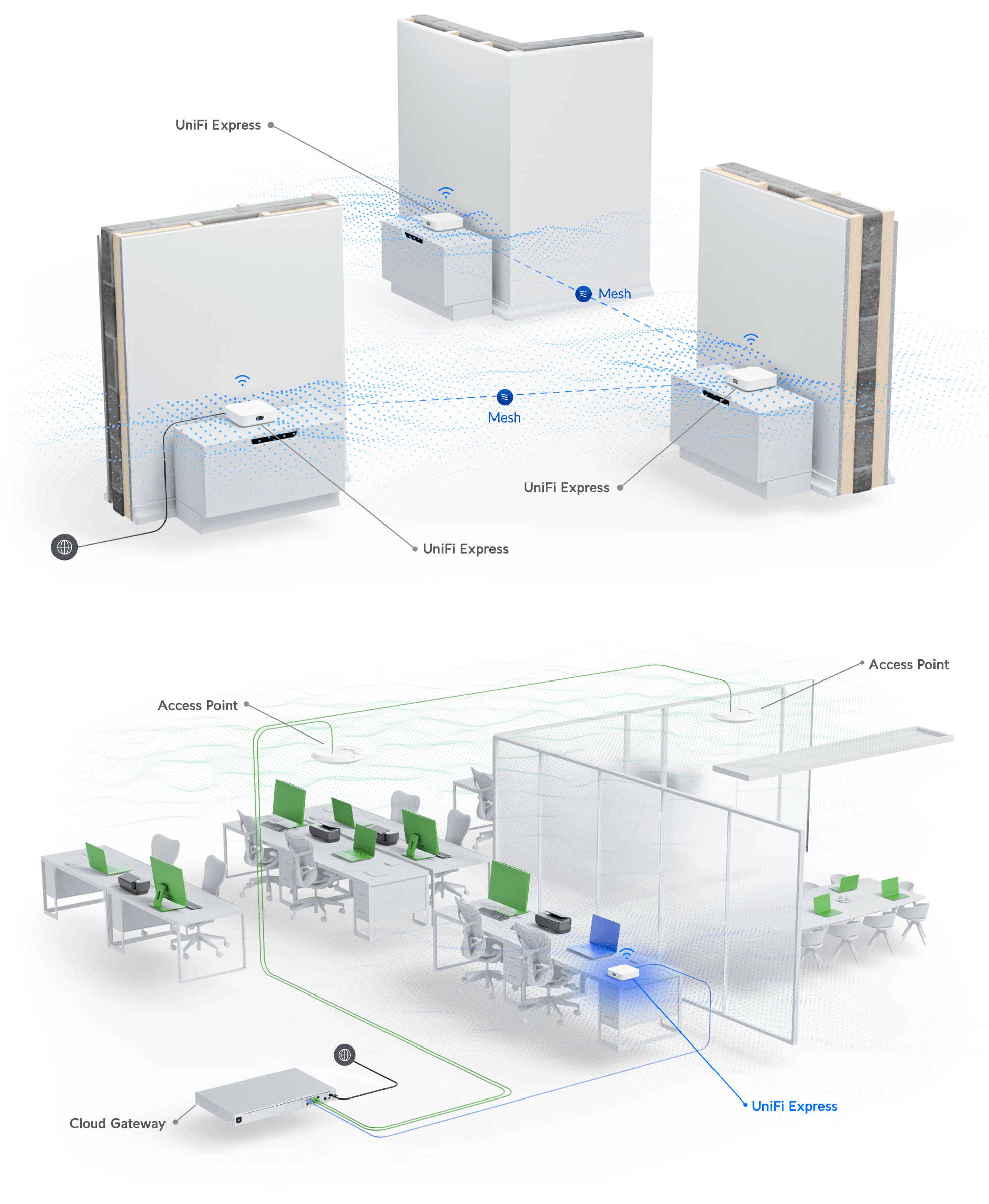

UniFi Express runs UniFi Network. For expanded application support, add an additional UniFi Console. For example, a Cloud Key or Network Video Recorder can be added to a UniFi Express powered network to run UniFi Protect for camera security. UniFi Express can also be deployed as a WiFi access point in existing UniFi Networks with a wired or wireless uplink. UniFi Express supports up to 5 connected UniFi Network devices, including other UniFi Express units, switches, and WiFi access points. Each UniFi Express can support 60+ connected client devices. UniFi Express can route traffic at speeds up to 1 Gbps. Security features such as Device Identification, Traffic Identification, Country Restrictions, and Ad Blocking can all be enabled without impacting routing performance. UniFi Express largely offers the same experience as all other UniFi Gateways, with powerful network segmentation, application-aware firewall, VPN, and license-free Site Magic SD-WAN capabilities. The only exceptions are Suspicious Activity features (also known as IDS/IPS), which are not available on UniFi Express. UniFi Express is designed to be flexibly placed on any flat surface, such as a desk. A magnetic wall mount accessory will be available soon for expanded mounting versatility. Technical Specifications De meest gestelde vragen (FAQ) op een rijtje.

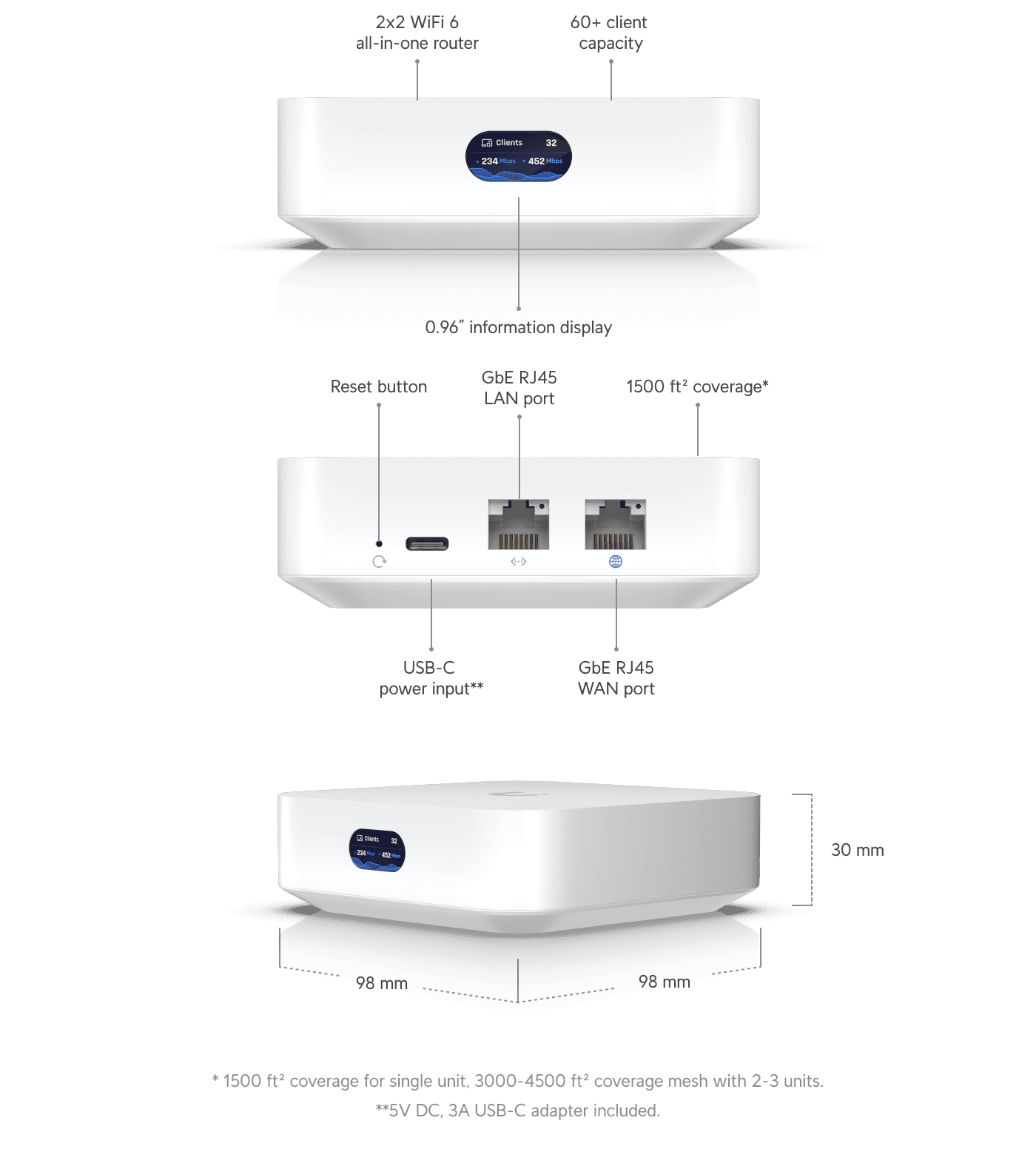

Mechanical
Dimensions
98 x 98 x 30 mm (3.6 x 3.6 x 1.2″)
Weight
302 g (10.7 oz)
Enclosure material
Polycarbonate
Hardware
Networking interface
(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port
Management interface
Ethernet
Bluetooth
Power method
USB type C (5V DC/3A)
Max. power consumption
10W
Max. WiFi TX power
2.4 GHz
5 GHz22 dBm
25 dBm
MIMO
2.4 GHz
5 GHz2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz573.5 Mbps
2.4 Gbps
Antenna gain
2.4 GHz
5 GHz4 dBi
5.15 dBi
Antennas
(2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna
LCM display
0.96″ status display
Button
Factory reset
Operating temperature
-10 to 45° C (14 to 113° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
60+
Zero wait DFS
Yes
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
